Ind.M8,PNP-NC,Cable,Sch-LD
Ind.M8,PNP-NC,Cable,Sch-LD

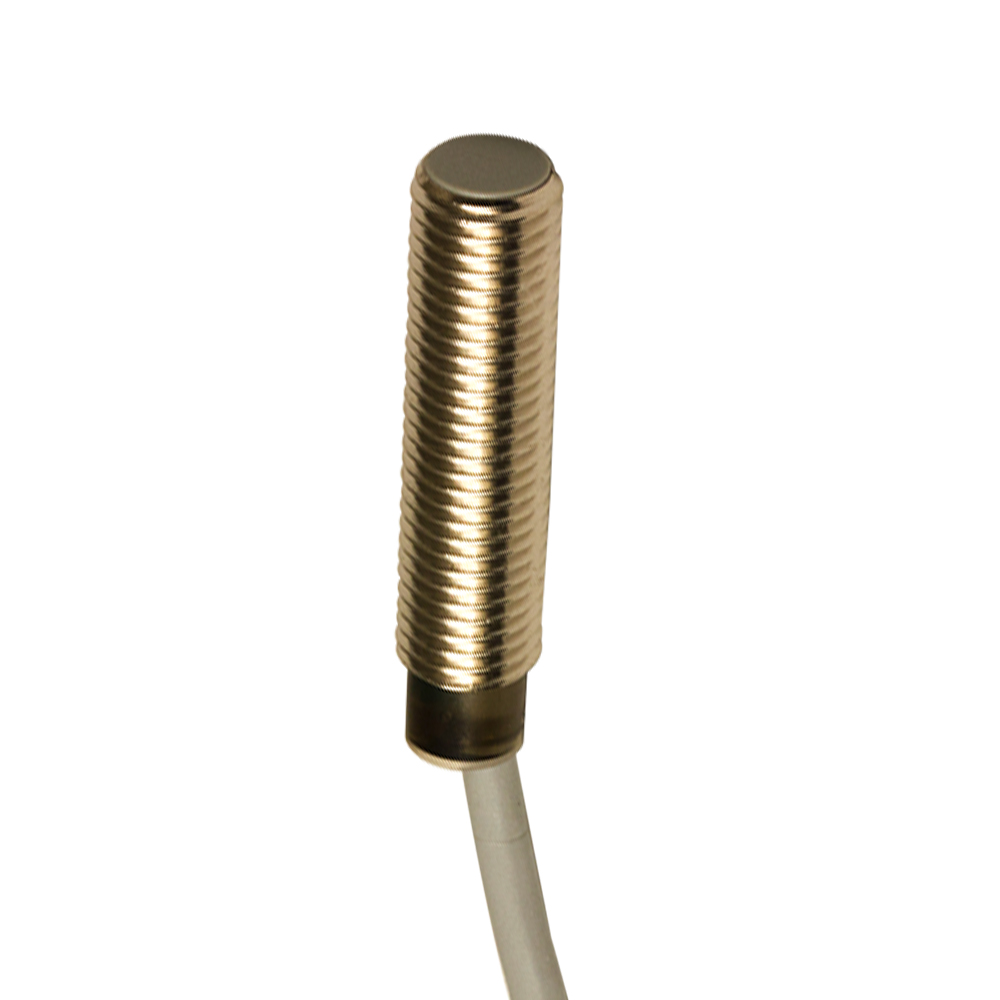

Inductive sensor M8 Sn 2 mm NC/PNP cable 10m axial
Orderable item
-
Description
Technical Features
Detection propertiesNominal sensing distance 2mm Operanting distance 0…1,62mm Standard target 8x8mm FE360 Correction Factor copper: 0,15 ± 10% / aluminium: 0,15 ± 10% / brass: 0,21 ± 10% / stainless steel: 0,56 ± 10% Thermal drift of Sr < 10% Repeat Accuracy < 5% (UB 24V Ta=23°C ±5°C) Hysteresis 1 … 20% ApplicationDescription M8 mini flush mount Functions Proximity OutputsOutput type PNP Output Function NC Switching frequency 7kHz Electrical dataOperating Voltage 10...30Vdc No-Load supply current ≤ 10mA Load current ≤ 100mA Leakage current ≤ 10μA Output voltage drop ≤ 1,5V @100mA Max ripple content ≤ 10% LED indicators Yellow LED output state Time delay before availability ≤ 50ms Short-circuit protection Yes Reverse Polarity Protection Yes Impulsive Overvoltage Protection Yes Protection against inductive loads Yes Mechanical dataMounting Shielded Housing Material AISI 303 Stainless Steel Connections 10m PVC Cable Active Head Material PBT Tightening torque 5Nm Material AISI303 Stainless Steel Diameter/Dimension M8 Test/ApprovalsApprovals CE cULus EMC compatibility IEC 60947-5-2 Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 AccessoriesSupplied Accessories 2 nuts M8x1 Generical DataDimensions M8 x 1 / L = 20,3mm Operating Temperature -25°C…+70°C Mechanical Protection IP67
