Ind.M8,PNP-NC,Cable,Sch-LD
Ind.M8,PNP-NC,Cable,Sch-LD

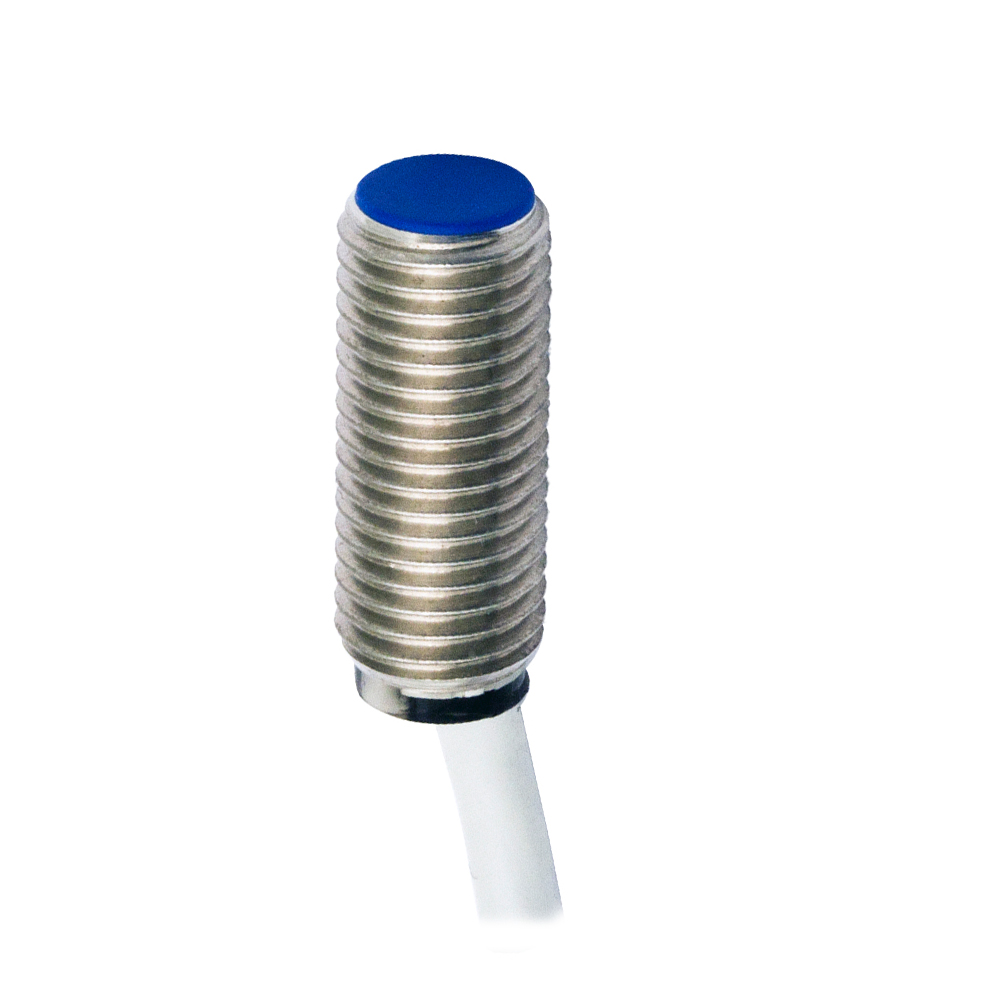

Inductive sensor M8 Sn 2 mm NC/PNP cable 2m axial
Orderable item
-
Description
Overview Miniaturized dimensions: M8 x 20 mm (cable) / 30 mm (plug) lenght Operating voltage: 10...30 Vcc Output current: 100 mA LED output indicator Totally protected against electrical damages Cable and plug M8 output Steinless steel housing
Technical Features
Detection propertiesNominal sensing distance 2mm Operanting distance 0…1,62mm Standard target 8x8mm FE360 Correction Factor copper: 0,15 ± 10% / aluminium: 0,15 ± 10% / brass: 0,21 ± 10% / stainless steel: 0,56 ± 10% Thermal drift of Sr < 10% Repeat Accuracy < 5% (UB 24V Ta=23°C ±5°C) Hysteresis 1 … 20% ApplicationDescription M8 mini flush mount Functions Proximity OutputsOutput type PNP Output Function NC Switching frequency 7kHz Electrical dataOperating Voltage 10...30Vdc No-Load supply current ≤ 10mA Load current ≤ 100mA Leakage current ≤ 10μA Output voltage drop ≤ 1,5V @100mA Max ripple content ≤ 10% LED indicators Yellow LED output state Time delay before availability ≤ 50ms Short-circuit protection Yes Reverse Polarity Protection Yes Impulsive Overvoltage Protection Yes Protection against inductive loads Yes Mechanical dataMounting Shielded Dimensions M8 x 1 / L = 20,3mm Weight 30g Housing Material AISI 303 Stainless Steel Connections 2m PVC Cable Active Head Material PBT Tightening torque 5Nm Operating temperature -25°C…+70°C Material AISI303 Stainless Steel Diameter/Dimension M8 Test/ApprovalsApprovals CE cULus EMC compatibility IEC 60947-5-2 Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 Degree of protection IP67 AccessoriesSupplied Accessories 2 nuts M8x1 Generical DataDimensions M8 x 1 / L = 20,3mm Operating Temperature -25°C…+70°C Mechanical Protection IP67
