In.M8,PNP-NO,M8,Nsch-STD,steel

Ind.M8,PNP-NO,M8,Nsch-STD

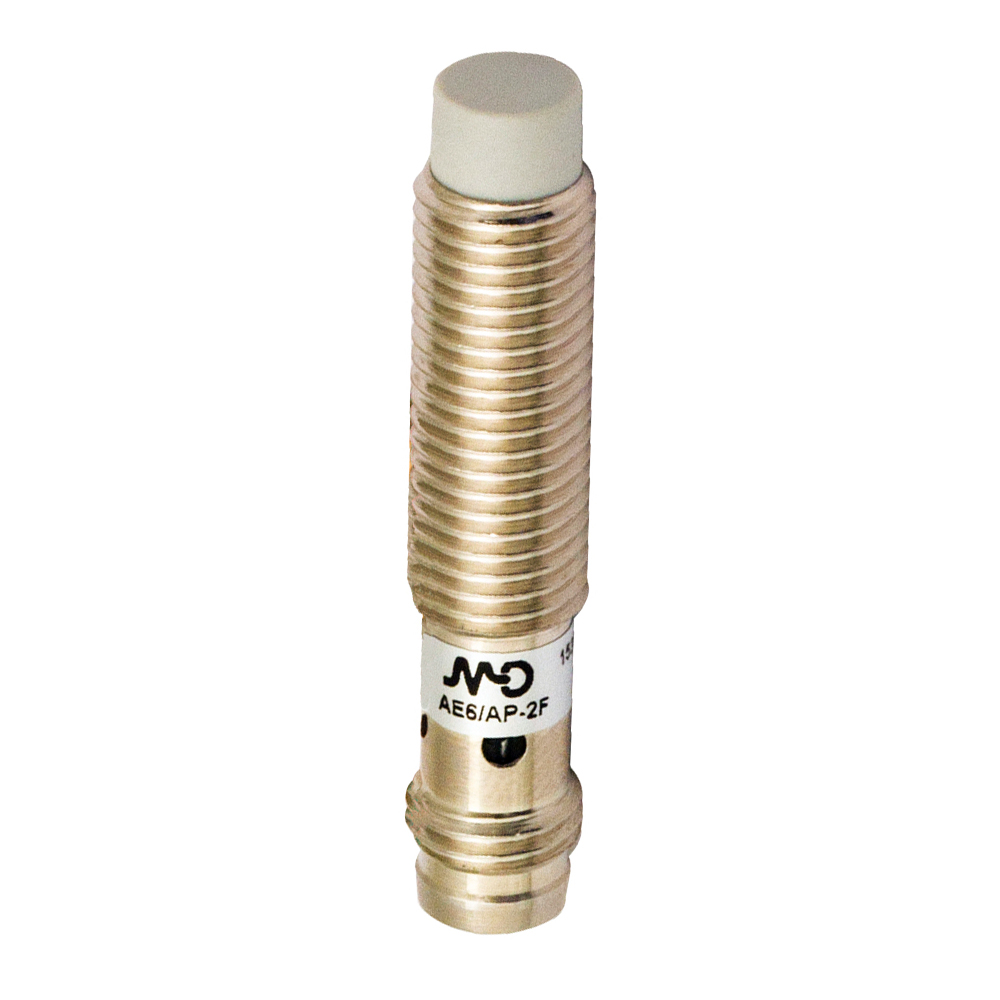

Inductive sensor M8 short unshielded NO/PNP conn. M8, housing AISI303

Article no.: AE6/AP-2F4W
Orderable item
Register
  • Description

    Technical Features

    Detection properties
    Nominal sensing distance 2,5mm
    Operanting distance 0…2,02mm
    Standard target 8x8mm FE360
    Correction Factor copper: 0,43 / aluminium: 0,51 / brass: 0,59 / stainless steel: 0,83
    Thermal drift of Sr < 10%
    Repeat Accuracy < 5% (UB 24V Ta=23°C ±5°C)
    Hysteresis 1 … 20%
    Application
    Description M8 short case no-flush mount
    Functions Proximity
    Outputs
    Output type PNP
    Output Function NO
    Switching frequency 5kHz
    Electrical data
    Operating Voltage 10...30Vdc
    No-Load supply current ≤ 10mA
    Load current ≤ 200mA
    Leakage current ≤ 10μA
    Output voltage drop ≤ 1,8V @200mA
    Max ripple content ≤ 10%
    LED indicators Yellow LED output state
    Time delay before availability ≤ 50ms
    Short-circuit protection Yes
    Reverse Polarity Protection Yes
    Impulsive Overvoltage Protection Yes
    Protection against inductive loads Yes
    Mechanical data
    Mounting Unshielded
    Housing Material AISI303 Stainless Steel
    Connections M8 Plug
    Active Head Material PBT
    Tightening torque 3Nm
    Material AISI303 Stainless Steel
    Diameter/Dimension M8
    Test/Approvals
    Approvals CE UR
    EMC compatibility IEC 60947-5-2
    Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
    Accessories
    Supplied Accessories 2 nuts M8x1
    Generical Data
    Dimensions M8 x 1 / L = 40mm
    Operating Temperature -25°C…+70°C
    Mechanical Protection IP67
