I.M8,PNP-NO,Cable,Sch-STD,ATEX

Ind.M8,PNP-NO,Cable,Sch-STD

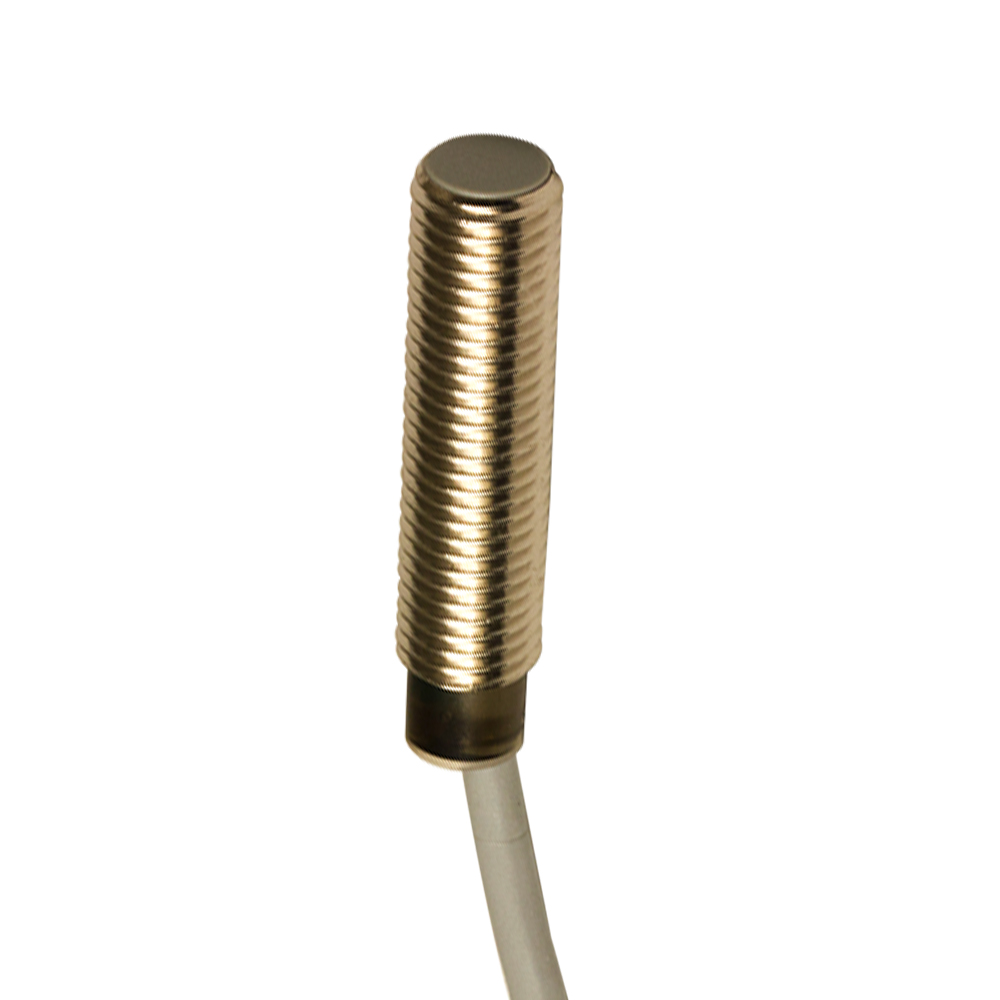

Inductive sensor M8 shielded STD short NO/PNP cable 2m II 3G Ex nA IIC T5, II 3D Ex tD A22 IP67 T90°C

Article no.: AE6/AP-1AAN
Orderable item
Register
  • Description

    Technical Features

    Detection properties
    Nominal sensing distance 1,5mm
    Operanting distance 0…1,21mm
    Standard target 8x8mm FE360
    Correction Factor copper: 0,29 / aluminium: 0,38 / brass: 0,49 / stainless steel: 0,78
    Thermal drift of Sr < 10%
    Repeat Accuracy < 5% (UB 24V Ta=23°C ±5°C)
    Hysteresis 1 … 20%
    Application
    Description M8 short case flush mount
    Functions Proximity
    Outputs
    Output type PNP
    Output Function NO
    Switching frequency 5kHz
    Electrical data
    Operating Voltage 10...30Vdc
    No-Load supply current ≤ 10mA
    Load current ≤ 200mA
    Leakage current ≤ 10μA
    Output voltage drop ≤ 1,8V @200mA
    Max ripple content ≤ 10%
    LED indicators Yellow LED output state
    Time delay before availability ≤ 50ms
    Short-circuit protection Yes
    Reverse Polarity Protection Yes
    Impulsive Overvoltage Protection Yes
    Protection against inductive loads Yes
    Mechanical data
    Mounting Shielded
    Housing Material Nickel-plated brass
    Connections 2m PVC Cable
    Active Head Material PBT
    Tightening torque 3Nm
    Material Nickel-plated brass
    Diameter/Dimension M8
    Test/Approvals
    Approvals CE UR II 3G Ex nA IIC T5 Gc II 3D Ex tc IIIB T90°C Dc
    EMC compatibility IEC 60947-5-2
    Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
    Accessories
    Supplied Accessories 2 nuts M8x1
    Generical Data
    Dimensions M8 x 1 / L = 35,5mm
    Operating Temperature -25°C…+70°C
    Mechanical Protection IP67
