In.M5,PNP-NO,Pigtail M8,SchSTD

Ind.M5,PNP-NO,Pigtail M8,Sch-STD

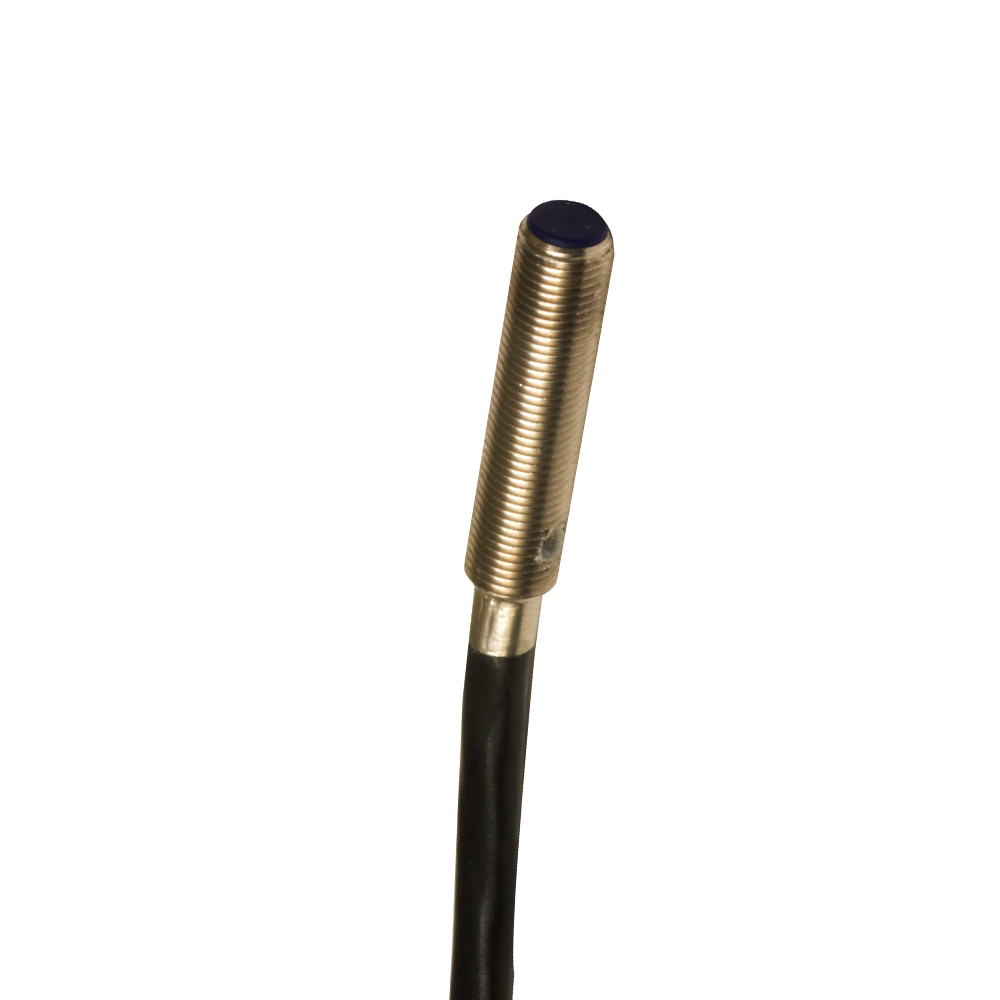

Inductive sensor M5 Sn 0,8 mm NO/PNP cable 200 mm axial PUR with M8 3 pin plug

Article no.: AD6/AP-1A8FVF80
Orderable item
Register
  • Description

    Technical Features

    Detection properties
    Nominal sensing distance 0,8mm
    Operanting distance 0…0,65mm
    Standard target 5x5mm FE360
    Correction Factor copper: 0,32 ± 10% / aluminium: 0,26 ± 10% / brass: 0,35 ± 10% / stainless steel: 0,66 ± 10%
    Thermal drift of Sr < 10%
    Repeat Accuracy < 5% (UB 24V Ta=23°C ±5°C)
    Hysteresis 1 … 20%
    Application
    Description M5 short case flush mount
    Functions Proximity
    Outputs
    Output type PNP
    Output Function NO
    Switching frequency 5kHz
    Electrical data
    Operating Voltage 10...30Vdc
    No-Load supply current ≤ 10mA
    Load current ≤ 100mA
    Leakage current ≤ 10μA
    Output voltage drop ≤ 1,5V @100mA
    Max ripple content ≤ 10%
    LED indicators Yellow LED output state
    Time delay before availability ≤ 50ms
    Short-circuit protection Yes
    Reverse Polarity Protection Yes
    Impulsive Overvoltage Protection Yes
    Protection against inductive loads Yes
    Mechanical data
    Mounting Shielded
    Housing Material AISI303 Stainless Steel
    Connections 200mm PUR Cable + M8 Plug
    Active Head Material PBT
    Tightening torque 2Nm
    Material AISI303 Stainless Steel
    Diameter/Dimension M5
    Test/Approvals
    Approvals CE cULus
    EMC compatibility IEC 60947-5-2
    Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
    Accessories
    Supplied Accessories 2 nuts M5x0.5
    Generical Data
    Dimensions M5 x 0,5 / L = 24,9mm
    Operating Temperature -25°C…+70°C
    Mechanical Protection IP67
