Ind.M5,NPN-NO,Cable,Sch-LD

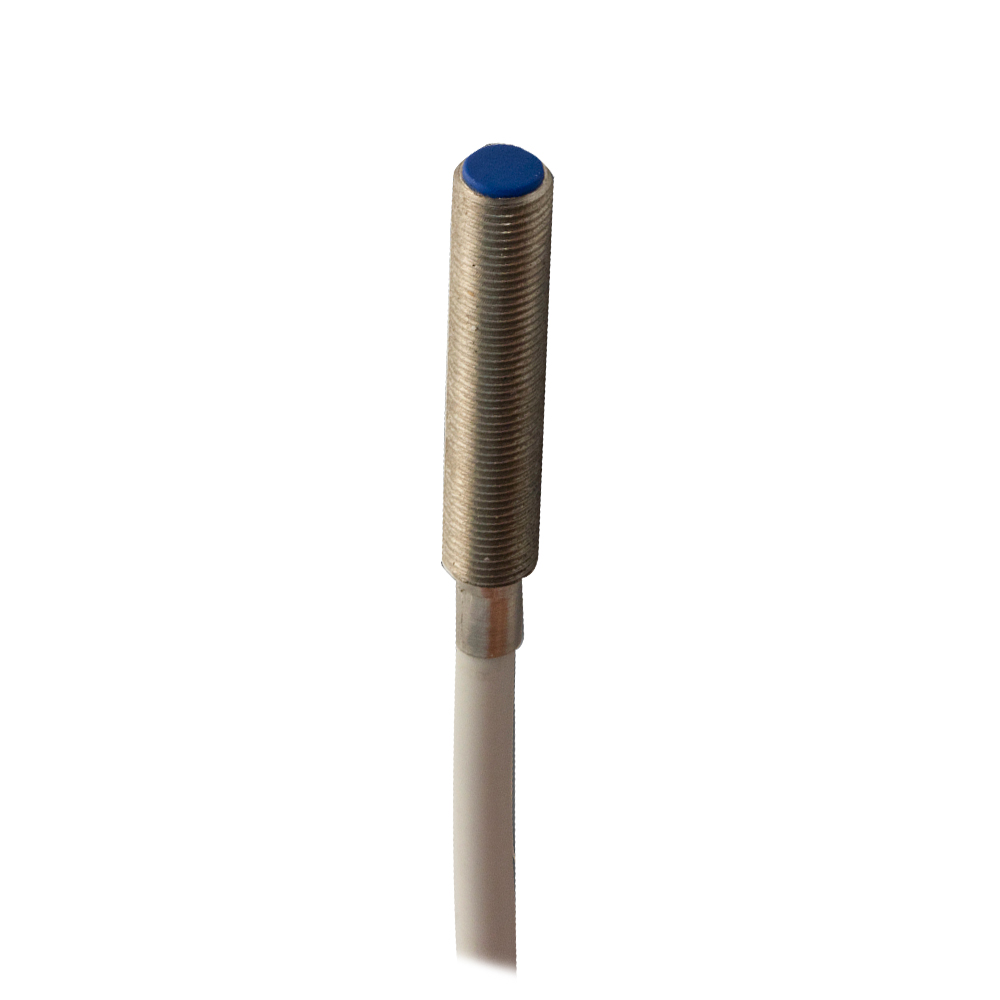

Ind.M5,NPN-NO,Cable,Sch-LD Inductive sensor M5 Sn 1,5 mm NO/NPN PUR cable 2m axial, USER MANUALS
Orderable item
-
Description
N/A
Detection properties Nominal sensing distance 1,5mm Operanting distance 0…1,21mm Standard target 5x5mm FE360 Correction Factor copper: 0,29 ± 10% / aluminium: 0,23 ± 10% / brass: 0,31 ± 10% / stainless steel: 0,66 ± 10% Thermal drift of Sr < 10% Repeat Accuracy < 5% (UB 24V Ta=23°C ±5°C) Hysteresis 1 … 20% Application Description M5 standard flush mount Functions Proximity Outputs Output type NPN Output Function NO Switching frequency 5kHz Electrical data Operating Voltage 10...30Vdc No-Load supply current ≤ 10mA Load current ≤ 100mA Leakage current ≤ 10μA Output voltage drop ≤ 1,5V @100mA Max ripple content ≤ 10% LED indicators Yellow LED output state Time delay before availability ≤ 50ms Short-circuit protection Yes Reverse Polarity Protection Yes Impulsive Overvoltage Protection Yes Protection against inductive loads Yes Mechanical data Mounting Shielded Housing Material AISI303 Stainless Steel Connections 2m PUR Cable Active Head Material PBT Tightening torque 2Nm Material AISI303 Stainless Steel Diameter/Dimension M5 Test/Approvals Approvals CE cULus EMC compatibility IEC 60947-5-2 Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 Accessories Supplied Accessories 2 nuts M5x0.5 Generical Data Dimensions M5 x 0,5 / L = 30,2mm Operating Temperature -25°C…+70°C Mechanical Protection IP67 -
