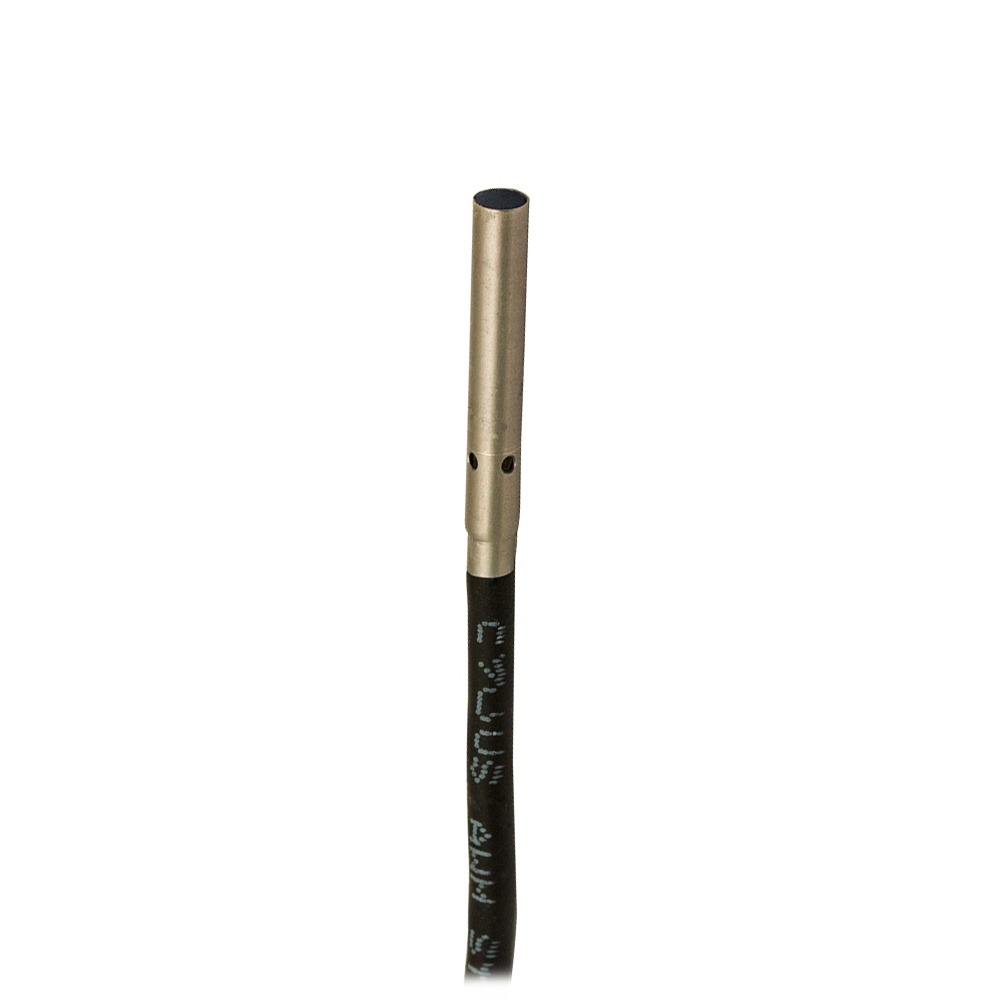

Ind.d3,PNP-NO,Cable,Sch-STD
Ind.d3,PNP-NO,Cable,Sch-STD Inductive sensor Ø3 Sn 0,6 mm NO/PNP cable 2m axial, 2D FILES, FILE 3D, CAD FILES, SERIES CATALOGUE
In Stock
-
Description
- Complete range of cylindrical ultraminiaturized inductive sensors Ø 3
- IP67 protection degree
Detection properties Nominal sensing distance 0,6mm Operanting distance 0…0,48mm Standard target 3x3mm FE360 Correction Factor copper: 0,32 ± 10% / aluminium: 0,24 ± 10% / brass: 0,39 ± 10% / stainless steel: 0,57 ± 10% Thermal drift of Sr < 10% Repeat Accuracy < 5% (UB 24V Ta=23°C ±5°C) Hysteresis 1 … 20% Application Description Ø3 standard flush mount Functions Proximity Outputs Output type PNP Output Function NO Switching frequency 3kHz Electrical data Operating Voltage 10...30Vdc No-Load supply current ≤ 10mA Load current ≤ 100mA Leakage current ≤ 10μA Output voltage drop ≤ 1,5V @100mA Max ripple content ≤ 10% LED indicators Yellow LED output state Time delay before availability ≤ 50ms Short-circuit protection Yes Reverse Polarity Protection Yes Impulsive Overvoltage Protection Yes Protection against inductive loads Yes Mechanical data Mounting Shielded Dimensions Ø3 / L = 22mm Weight 30g Housing Material AISI303 Stainless Steel Connections 2m PUR Cable Active Head Material PBT Operating temperature -25°C…+70°C Material AISI303 Stainless Steel Diameter/Dimension Ø3 Test/Approvals Approvals CE UL EMC compatibility IEC 60947-5-2 Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 Degree of protection IP67 Generical Data Dimensions Ø3 / L = 22mm Operating Temperature -25°C…+70°C Mechanical Protection IP67 -
