IS-40-C11-S3
IS-40-C11-S3

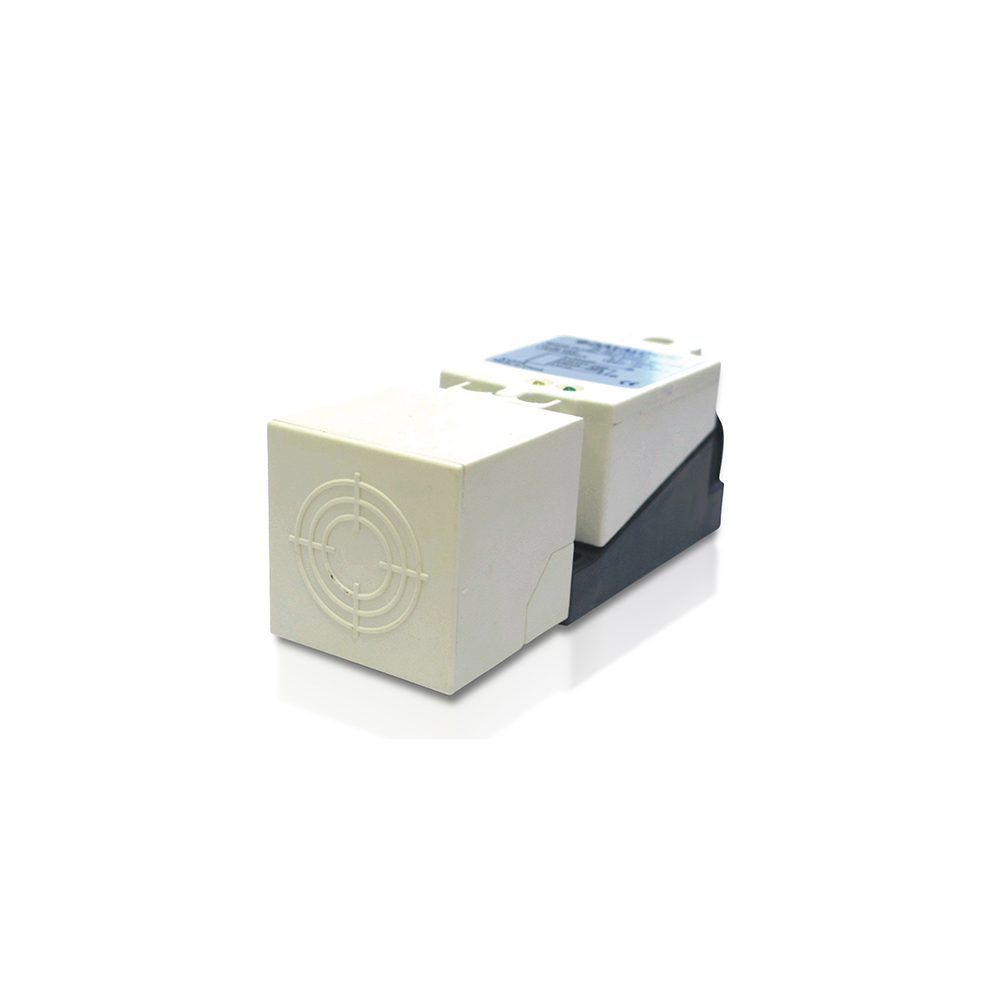

Inductive Proximity Sensor SQUARE 40 x 40 mm plastic - non flush 7...20 mm - analog - PG
Orderable item
-
Description
Overview Standard proximity M4, M5, M8, M12, M18, M30 Double range (i.e. M12 4mm, M18 14mm, M3020mm) Unshielded or shielded models for flush mounting Nickel brass or stainless steel short and longhousing Ecolab and Diversey certifications for industrialdetergents Multi-voltage, Metal face, Weld field immune models NO/NC, NPN or PNP output and programmableversions.
Technical Features
Detection propertiesNominal sensing distance 20mm Operanting distance 0…16,2mm Standard target 60x60mm FE360 Correction Factor copper: 0,4 / aluminium: 0,45 / brass: 0,5 / stainelss steel: 0,85 Repeat Accuracy 0,02mm Hysteresis < 10% ApplicationDescription Large block style no-flush mount Functions Proximity OutputsOutput type Analogue Output Function Analogue Switching frequency 100Hz Response time 5 Current Analogue Output 1 x 4...20mA Electrical dataOperating Voltage 10...30Vdc Load current 0…20mA / 200Ωmax Max ripple content ≤ 10% Short-circuit protection Yes Reverse Polarity Protection Yes Emission ≥100kHz Protection against inductive loads Yes Mechanical dataMounting Unshielded Dimensions 40x41x118 Housing Material Plastic - PBT Connections Terminal block Active Head Material PBT Material Plastic - PBT Diameter/Dimension 40x41x118 Test/ApprovalsApprovals CE Generical DataDimensions 40x41x118mm Operating Temperature -25°C…+70°C Mechanical Protection IP67
