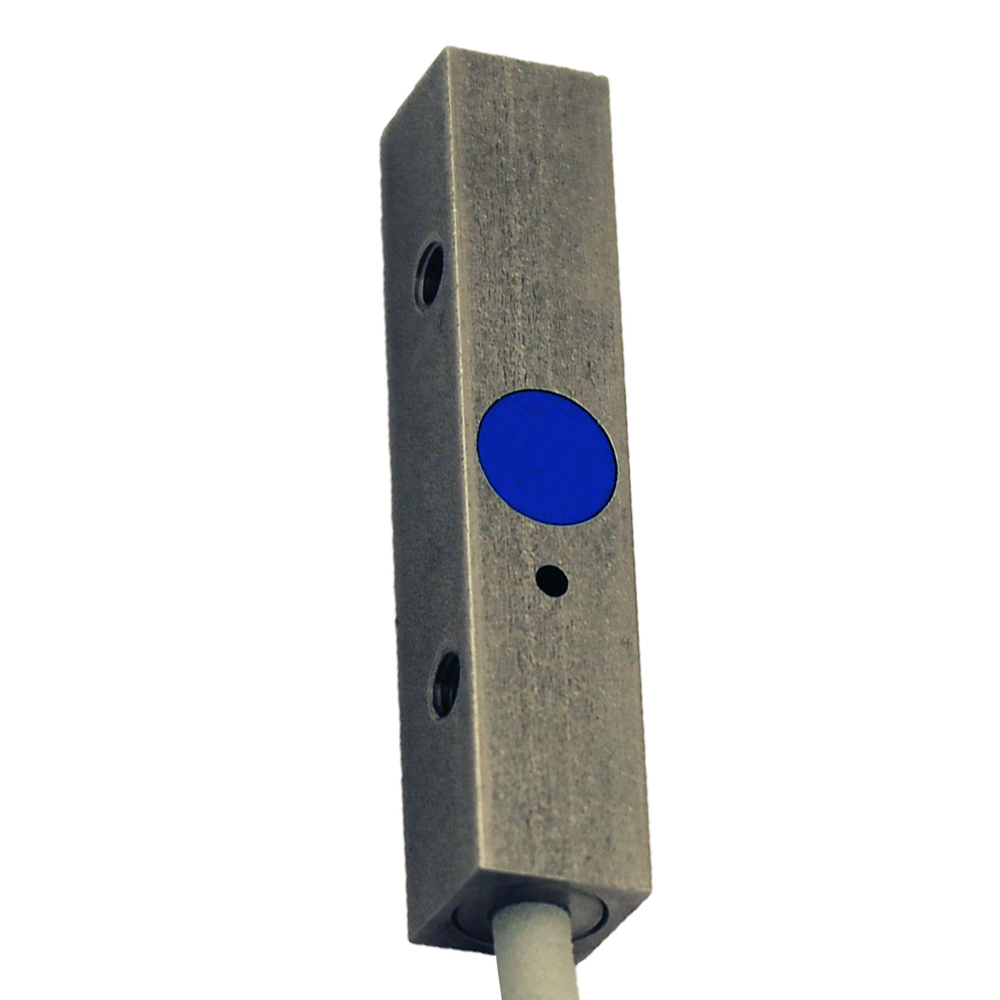

Inductive sensor 8x8x40mm, centre detection, Sn = 2 mm, PNP-NO, M8 pigtail plug, 200 mm PUR cable
Orderable item
-
Description
Overview Complete range of cubic inductive sensors:1. IL8 series: 8x8 mm with sensing head at the top2. IL9 series: 8x8 mm with sensing head at the centre IP67 protection degree
Technical Features
Detection propertiesNominal sensing distance 2mm Operanting distance 0…1,62mm Standard target 8x8mm FE360 Correction Factor copper: 0,19 / aluminium: 0,15 / brass: 0,25 / stainless steel: 0,61 Thermal drift of Sr < 10% Repeat Accuracy < 5% (UB 24V Ta=23°C ±5°C) Hysteresis 1 … 20% ApplicationDescription 8x8x40mm cubic flush mount Functions Proximity OutputsOutput type PNP Output Function NO Switching frequency ≤ 5kHz Electrical dataOperating Voltage 10...30Vdc No-Load supply current ≤ 10mA Load current ≤ 200mA Leakage current ≤ 10μA Output voltage drop ≤ 1,5V @200mA Max ripple content ≤ 10% LED indicators Blue LED output state Time delay before availability ≤ 50ms Short-circuit protection Yes Reverse Polarity Protection Yes Impulsive Overvoltage Protection Yes Protection against inductive loads Yes Mechanical dataMounting Shielded Dimensions 8 x 8 / L = 40mm / active head in the centre Weight 10g Housing Material AISI303 Stainless Steel Connections 200mm PUR Cable + M8 Plug Active Head Material PBT Operating temperature -25°C…+70°C Material AISI303 Stainless Steel Diameter/Dimension 8x8x40mm Test/ApprovalsApprovals CE EMC compatibility IEC 60947-5-2 Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 Degree of protection IP67 Generical DataDimensions 8 x 8 / L = 40mm / active head in the centre Operating Temperature -25°C…+70°C Mechanical Protection IP67
