ENC41-H06-2048-C15

ENC41-H06-2048-C15

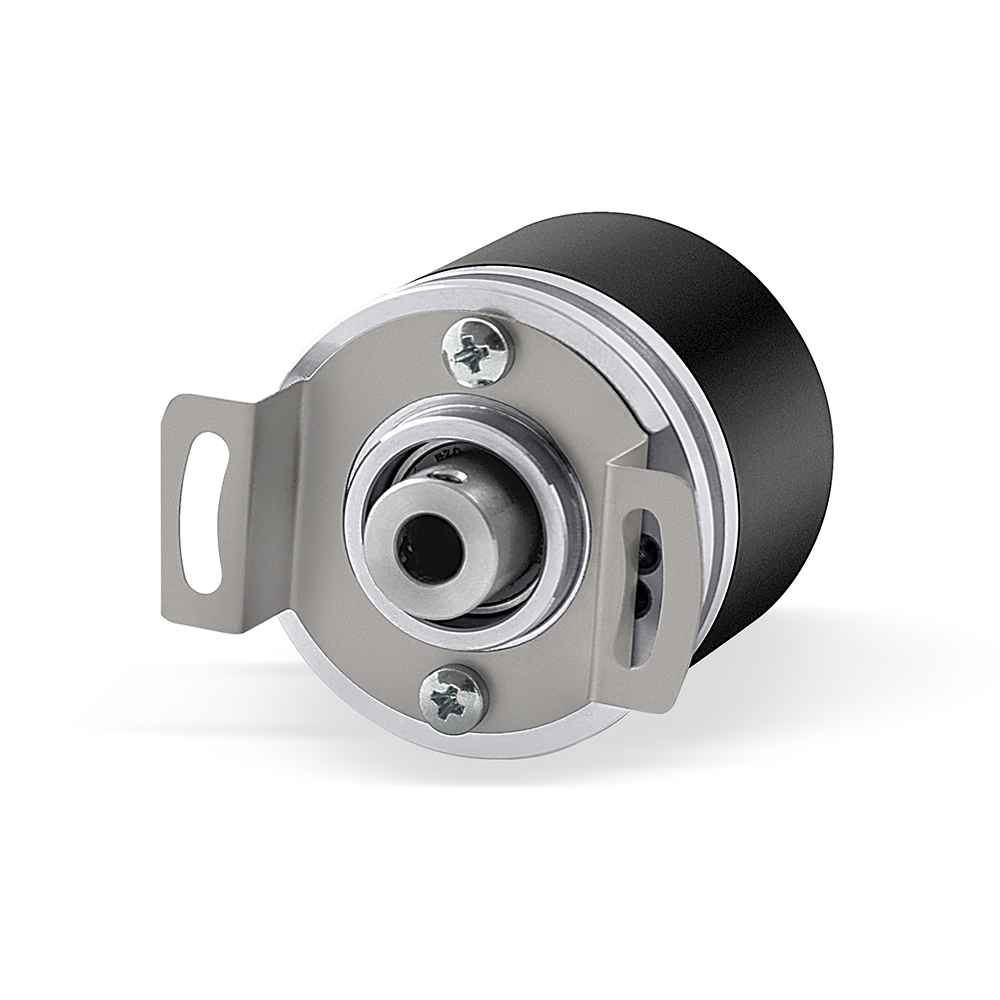

Encoder incremental 41 mm - blind hollow 6 mm -2048PPr - cable

Article no.: 95B080120
Orderable item
Register
  • Description
    Overview Compact dimension Ø41mm Hollow or solid shaft Cost effective Light dutyCompact dimension Ø41mm Hollow or solid shaft Cost effective Light duty

    Technical Features

    Detection properties
    Nominal sensing distance 2048 ppr
    Sensitivity adjustment n/a
    Application
    Description Blind hollow Ø6mm
    Functions Incremental
    Outputs
    Output type Push-pull / Line driver
    Response time n/a
    Electrical data
    Operating Voltage 5-30 VDC
    Emission n/a
    Mechanical data
    Dimensions Ø41x44
    Connections 1.5 m cable
    Material Fibre glass / Aluminium
    Generical Data
    Dimensions Ø41x44
