Cap.d20,PNP-NO+NC,Cabl,Sch-STD

Name: Cap.d20,PNP-NO+NC,Cabl,Sch-STD
SKU: CE2/0P-1A
Availability: BackOrder

Cap.d20,PNP-NO+NC,Cable,Sch-STD

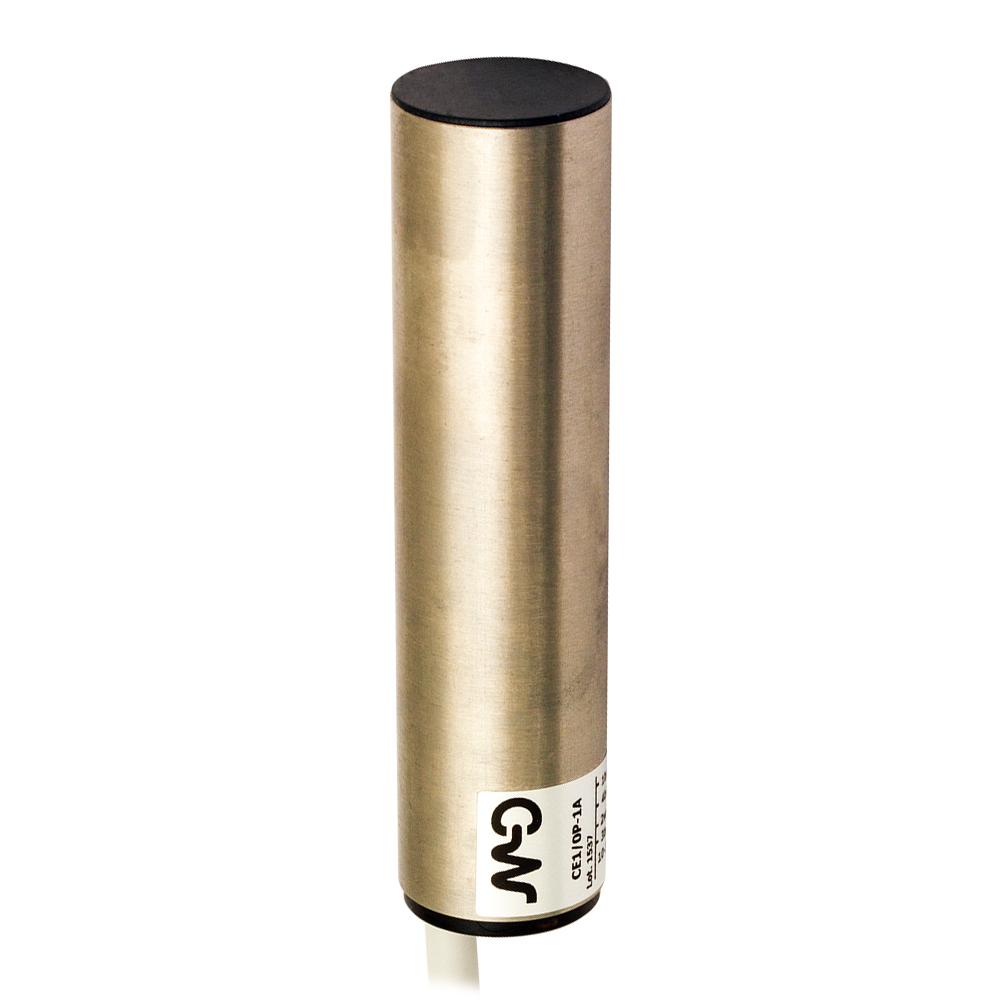

Capacitive sensor D20 shielded PNP cable 2m C/Autotest

Article no.: CE2/0P-1A

Orderable item

Overview Models with or without self-monitoring Sensitivity adjustment with trimmer NO+NC complementary output Stainless steel housing IP65 protection degree Complete protection against electrical damages Axial cable exit or M12 plastic plug cable exit

Technical Features

Detection properties

Nominal sensing distance	1,5…10mm
Thermal drift of Sr	< 20%
Repeat Accuracy	5%
Sensitivity adjustment	Yes
Hysteresis	≤ 20%

Outputs

Output type	PNP with self monitoring
Output Function	NO + NC
Switching frequency	300Hz

Electrical data

Operating Voltage	10..30Vdc
No-Load supply current	≤ 17mA
Load current	≤ 100mA
Leakage current	≤ 1μA
Output voltage drop	1,5V - max. IL=100mA
Max ripple content	≤15%
LED indicators	Yellow LED (object detected)
Time delay before availability	≤ 200ms
Short-circuit protection	Yes, autoreset
Reverse Polarity Protection	Yes
Impulsive Overvoltage Protection	Yes

Mechanical data

Mounting	Shielded
Dimensions	ø20 / L = 80mm
Weight	200g
Housing Material	AISI 303 Stainless Steel
Connections	2m PVC cable
Active Head Material	LCP
Operating temperature	-25°C…+70°C
Diameter/Dimension	ø20

Test/Approvals

Approvals	CE cULus
EMC compatibility	IEC 60947-5-2
Shocks and vibrations	Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protection	IP65

Accessories

Supplied Accessories

screw driver

Generical Data

Dimensions	ø20 / L = 80mm
Operating Temperature	-25°C…+70°C (without freeze)
Mechanical Protection	IP65
