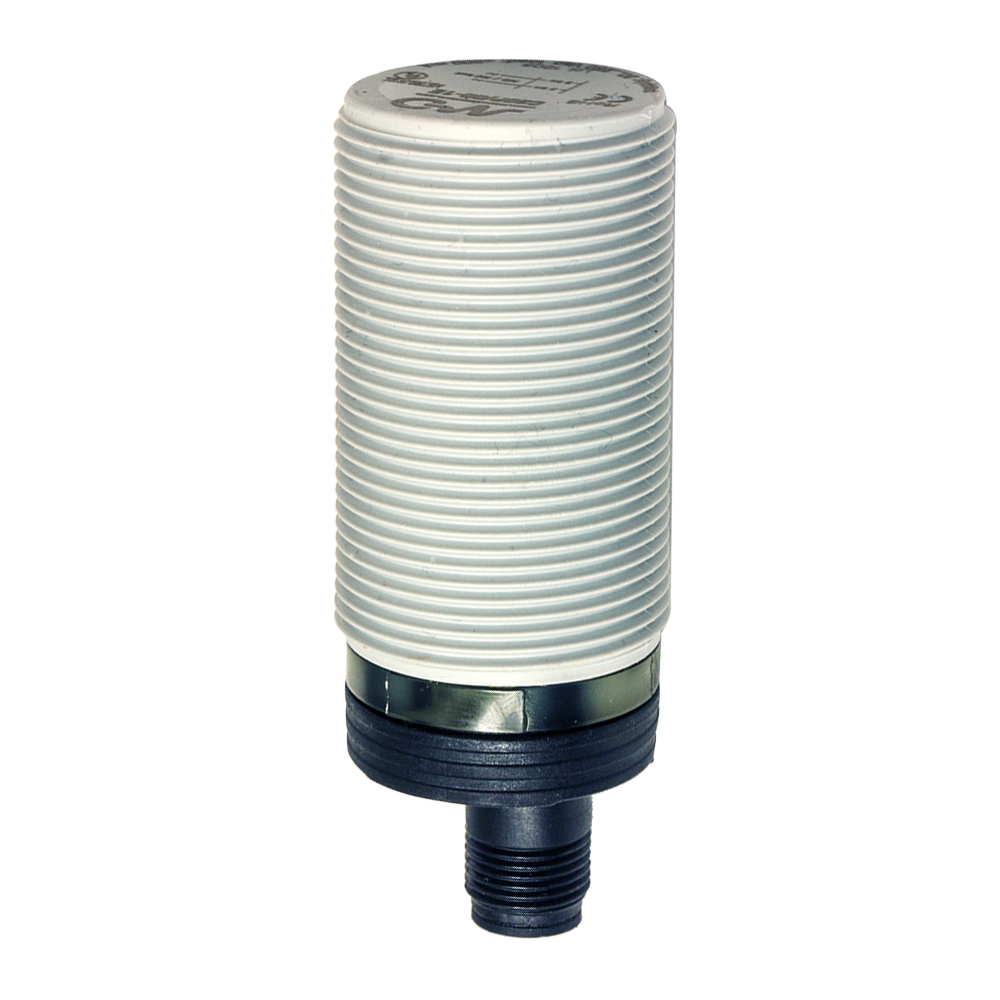

"M30,AC-NO/NC,1/2""-20UNF,Sch-LD"
Cap.M30, AC-NO/NC,1/2"-20UNF,Sch-LD
Capacitive sensor M30 Plastic Shielded AC 16 mm NO/NC conn. M12
Orderable item
-
Description
Overview DC or AC supply voltage High noise immunity Shielded and unshielded models Adjustable sensitivity Metallic or plastic housing
Technical Features
Detection propertiesNominal sensing distance 2…16mm Thermal drift of Sr < 20% Repeat Accuracy 5% Sensitivity adjustment Yes Hysteresis ≤ 20% OutputsOutput type SCR Output Function NO/NC Switching frequency 10Hz Electrical dataOperating Voltage 20...250Vac/50-60Hz No-Load supply current ≤ 12mA Load current 2,5A max (20ms) Leakage current ≤ 100µA Output voltage drop 10VAC @ IL≥200mA Max ripple content ≤10% LED indicators Yellow LED (object detected) Time delay before availability ≤ 200ms Short-circuit protection Yes, autoreset Reverse Polarity Protection Yes Impulsive Overvoltage Protection Yes Mechanical dataMounting Shielded Dimensions M30 / L = 79mm Weight 100g Housing Material Polyester Connections M12 plug Active Head Material Polyester Tightening torque 50Nm Operating temperature -25°C…+80°C (without freeze) Storage temperature -40°C…+85°C Diameter/Dimension M30 Test/ApprovalsApprovals CE cULus EMC compatibility IEC 60947-5-2 Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 Degree of protection IP67 AccessoriesSupplied Accessories screw driver, 2 x M30 nuts Generical DataDimensions M30 / L = 79mm Operating Temperature -25°C…+80°C (without freeze) Mechanical Protection IP67
