"M30,AC-NO/NC,1/2""-20UNF,Ns-LD"

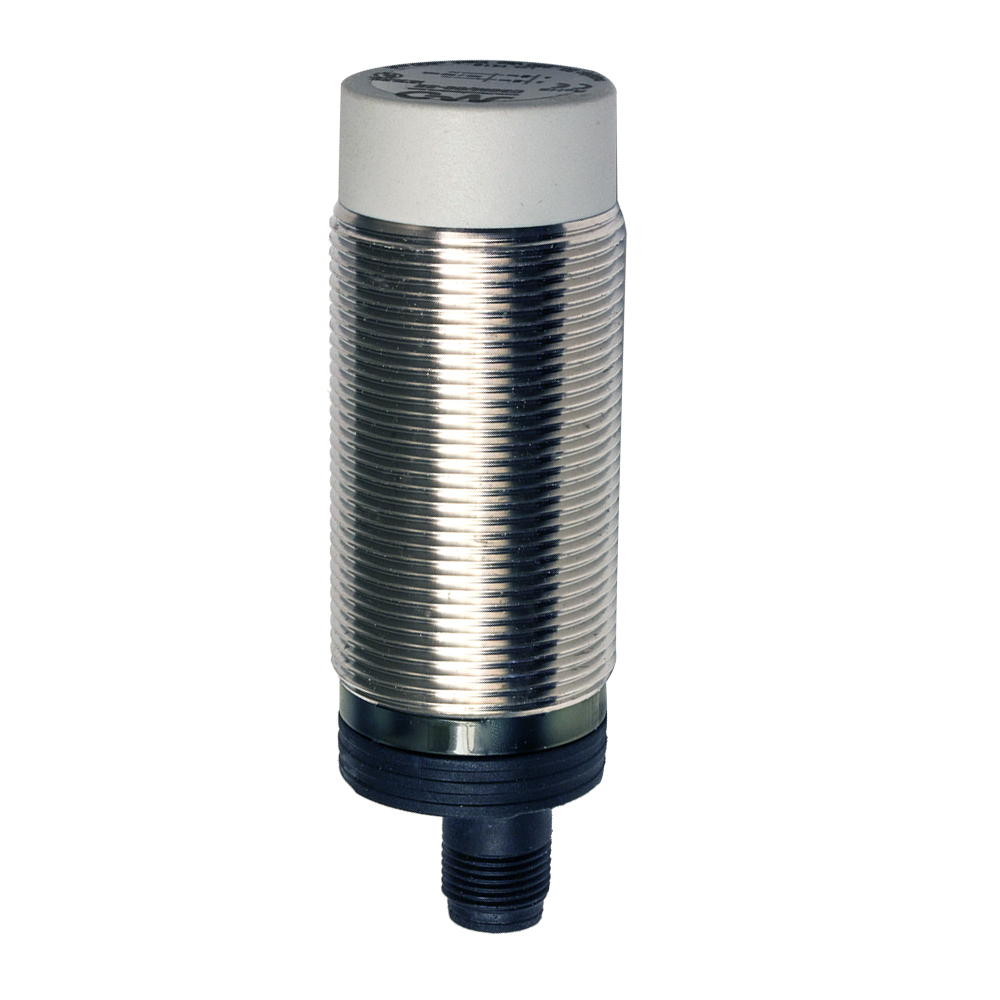

Cap.M30, AC-NO/NC,1/2"-20UNF,Nsch-LD Capacitive sensor M30 Inox Unshielded AC 25 mm NO/NC conn. M12, 2D FILES, FILE 3D, CAD FILES, EU DECLARATIONS, SERIES CATALOGUE, USER MANUALS
Orderable item
-
Description
- DC or AC supply voltage
- High noise immunity
- Shielded and unshielded models
- Adjustable sensitivity
- Metallic or plastic housing
Detection properties Nominal sensing distance 4…25mm Thermal drift of Sr < 20% Repeat Accuracy 5% Sensitivity adjustment Yes Hysteresis ≤ 20% Outputs Output type SCR Output Function NO/NC Switching frequency 10Hz Electrical data Operating Voltage 20...250Vac/50-60Hz No-Load supply current ≤ 12mA Load current 2,5A max (20ms) Leakage current ≤ 100µA Output voltage drop 10VAC @ IL≥200mA Max ripple content ≤10% LED indicators Yellow LED (object detected) Time delay before availability ≤ 200ms Short-circuit protection Yes, autoreset Reverse Polarity Protection Yes Impulsive Overvoltage Protection Yes Mechanical data Mounting Unshielded Dimensions M30 / L = 91mm Weight 150g Housing Material AISI 304 stainless steel Connections M12 plug Active Head Material Polyester Tightening torque 50Nm Operating temperature -25°C…+80°C (without freeze) Storage temperature -40°C…+85°C Diameter/Dimension M30 Test/Approvals Approvals CE cULus EMC compatibility IEC 60947-5-2 Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 Degree of protection IP67 Accessories Supplied Accessories screw driver, 2 x M30 nuts Generical Data Dimensions M30 / L = 91mm Operating Temperature -25°C…+80°C (without freeze) Mechanical Protection IP67 -
