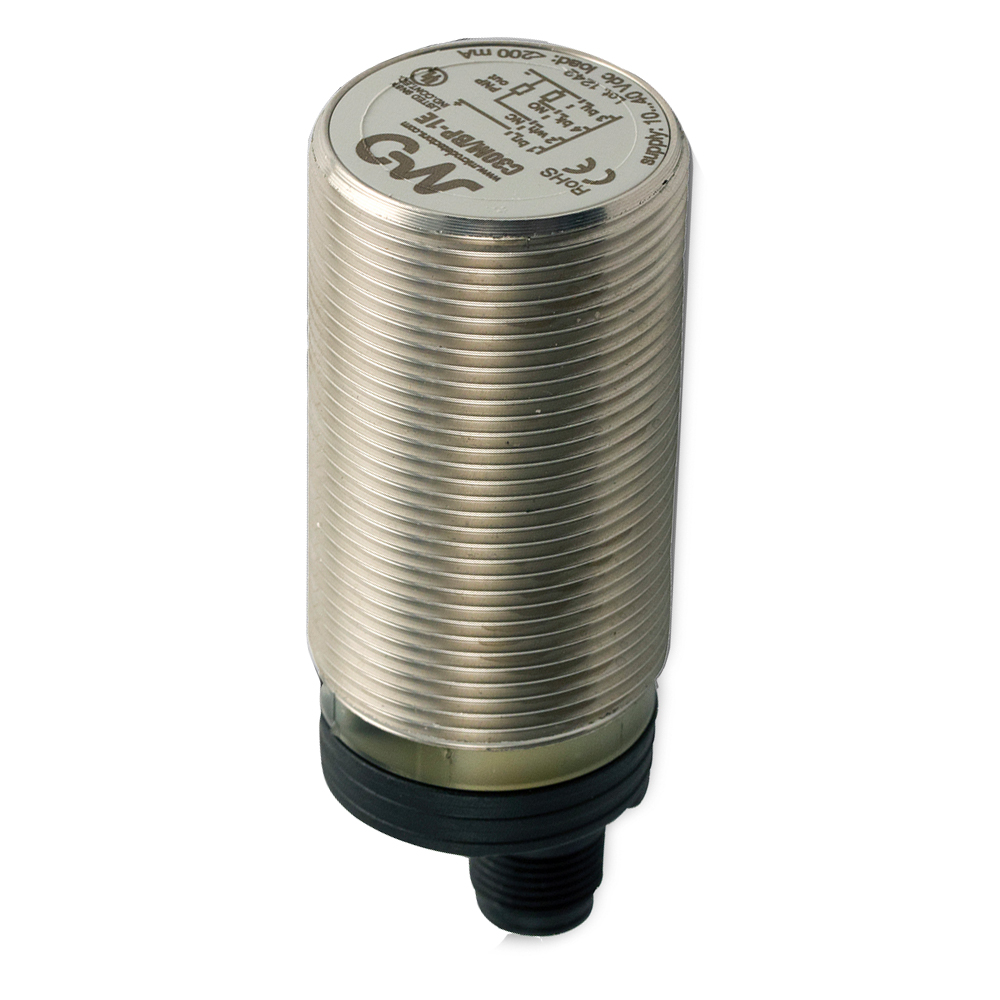

C.M30,NPN-NO+NC,M12Plug,SchLD
Cap.M30,NPN-NO+NC,M12 plug,Sch-LD Capacitive sensor M30 Inox Shielded DC 16 mm NPN NO+NC conn. M12, 2D FILES, FILE 3D, CAD FILES, EU DECLARATIONS, SERIES CATALOGUE, USER MANUALS
Orderable item
-
Description
- DC or AC supply voltage
- High noise immunity
- Shielded and unshielded models
- Adjustable sensitivity
- Metallic or plastic housing
Detection properties Nominal sensing distance 2…16mm Thermal drift of Sr < 20% Repeat Accuracy 5% Sensitivity adjustment Yes Hysteresis ≤ 20% Outputs Output type NPN Output Function NO + NC Switching frequency 30Hz Electrical data Operating Voltage 10...40Vdc No-Load supply current ≤ 12mA Load current ≤ 200mA Leakage current ≤ 100µA Output voltage drop 2,5Vmax @ IL=200mA Max ripple content ≤10% LED indicators Yellow LED (object detected) Time delay before availability ≤ 200ms Short-circuit protection Yes, autoreset Reverse Polarity Protection Yes Impulsive Overvoltage Protection Yes Mechanical data Mounting Shielded Dimensions M30 / L = 79mm Weight 150g Housing Material AISI 304 stainless steel Connections M12 plug Active Head Material Polyester Tightening torque 50Nm Operating temperature -25°C…+80°C (without freeze) Storage temperature -40°C…+85°C Diameter/Dimension M30 Test/Approvals Approvals CE cULus EMC compatibility IEC 60947-5-2 Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 Degree of protection IP67 Accessories Supplied Accessories screw driver, 2 x M30 nuts Generical Data Dimensions M30 / L = 79mm Operating Temperature -25°C…+80°C (without freeze) Mechanical Protection IP67 -
