Cap.M30,PNP-NO+NC,Cabl,Nsch-LD

Cap.M30,PNP-NO+NC,Cable,Nsch-LD

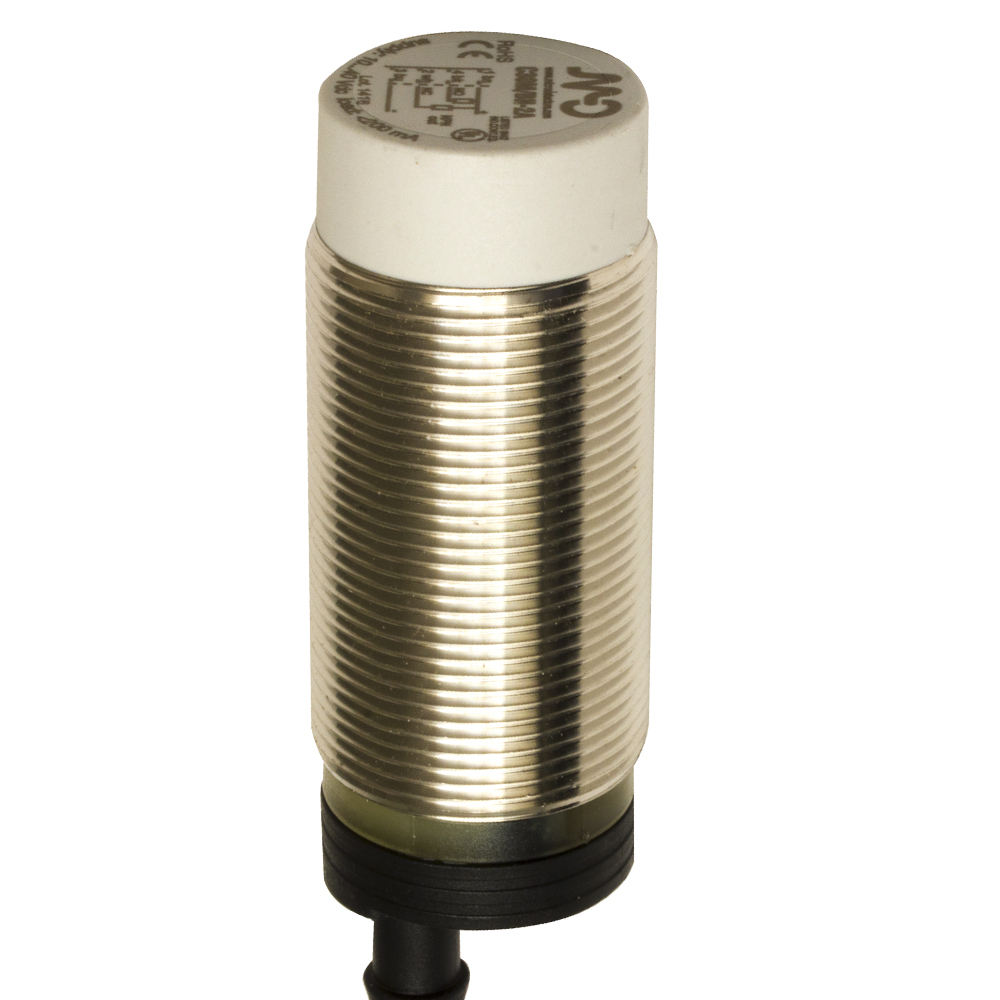

Capacitive sensor M30 Inox Unshielded DC 25 mm PNP NO+NC cable 2m axial

Article no.: C30M/BP-2A
Orderable item
Register
  • Description
    Overview DC or AC supply voltage High noise immunity Shielded and unshielded models Adjustable sensitivity Metallic or plastic housing

    Technical Features

    Detection properties
    Nominal sensing distance 4…25mm
    Thermal drift of Sr < 20%
    Repeat Accuracy 5%
    Sensitivity adjustment Yes
    Hysteresis ≤ 20%
    Outputs
    Output type PNP
    Output Function NO + NC
    Switching frequency 30Hz
    Electrical data
    Operating Voltage 10...40Vdc
    No-Load supply current ≤ 12mA
    Load current ≤ 200mA
    Leakage current ≤ 100µA
    Output voltage drop 2,5Vmax @ IL=200mA
    Max ripple content ≤10%
    LED indicators Yellow LED (object detected)
    Time delay before availability ≤ 200ms
    Short-circuit protection Yes, autoreset
    Reverse Polarity Protection Yes
    Impulsive Overvoltage Protection Yes
    Mechanical data
    Mounting Unshielded
    Dimensions M30 / L = 91mm
    Weight 230g
    Housing Material AISI 304 stainless steel
    Connections 2m PVC cable
    Active Head Material Polyester
    Tightening torque 50Nm
    Operating temperature -25°C…+80°C (without freeze)
    Storage temperature -40°C…+85°C
    Diameter/Dimension M30
    Test/Approvals
    Approvals CE cULus
    EMC compatibility IEC 60947-5-2
    Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
    Degree of protection IP67
    Accessories
    Supplied Accessories screw driver, 2 x M30 nuts
    Generical Data
    Dimensions M30 / L = 91mm
    Operating Temperature -25°C…+80°C (without freeze)
    Mechanical Protection IP67
