"M18,AC-NC,1/2""-20UNF,Sch-LD"
Cap.M18,2 wires AC-NC,1/2"-20UNF,Sch-LD

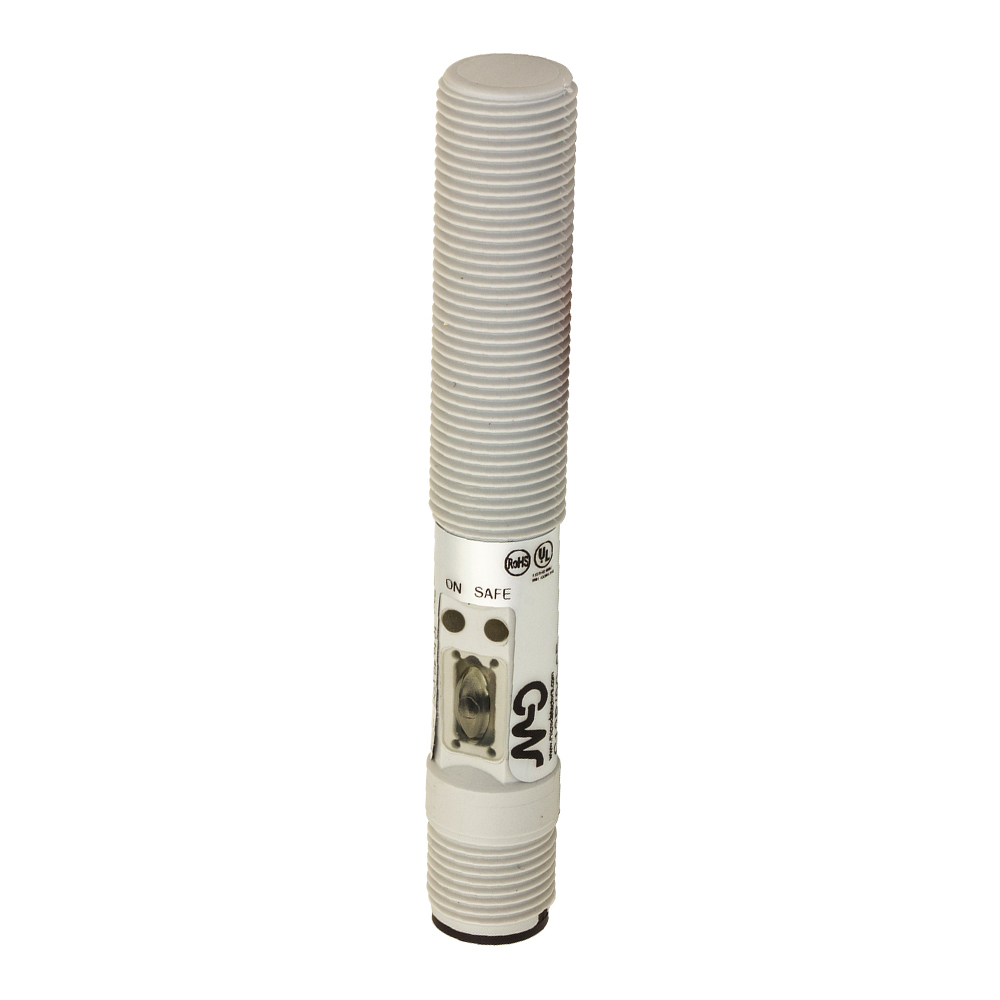

Capacitive sensor M18 Plastic Shielded AC 8 mm NC conn. M12
Orderable item
-
Description
Overview DC or AC supply voltage High noise immunity Shielded and unshielded models Adjustable sensitivity Plastic housing
Technical Features
Detection propertiesNominal sensing distance 3…8mm Thermal drift of Sr < 20% Repeat Accuracy 5% Sensitivity adjustment Yes Hysteresis ≤ 20% OutputsOutput type SCR Output Function NC Switching frequency 10Hz Electrical dataOperating Voltage 20...250Vac/50-60Hz No-Load supply current ≤ 12mA Load current ≤ 500mA; max 2,5A 20ms Leakage current ≤ 100µA Output voltage drop ≤ 10VAC @ IL ≥20mA Max ripple content ≤10% LED indicators Yellow LED (object detected) Time delay before availability ≤ 200ms Short-circuit protection polarity reversal, overvoltage Reverse Polarity Protection Yes Impulsive Overvoltage Protection Yes Mechanical dataMounting Shielded Dimensions M18 x 1 / L = 83mm Weight 65g Housing Material Polyester Connections M12 plug Active Head Material Polyester Tightening torque 2,6Nm Operating temperature -35°C…+85°C (ohne Kondensation) Storage temperature -40°C…+85°C Diameter/Dimension M18 Test/ApprovalsApprovals CE cULus EMC compatibility IEC 60947-5-2 Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 Degree of protection IP67, IP68 AccessoriesSupplied Accessories screw driver, 2 x M18 nuts Generical DataDimensions M18 x 1 / L = 83mm Operating Temperature -35°C…+85°C (without freeze) Mechanical Protection IP67, IP68
