C.M18,PNP-NO+NC,M12Plug,NSchLD
Cap.M18,PNP-NO+NC,M12 plug,Nsch-LD

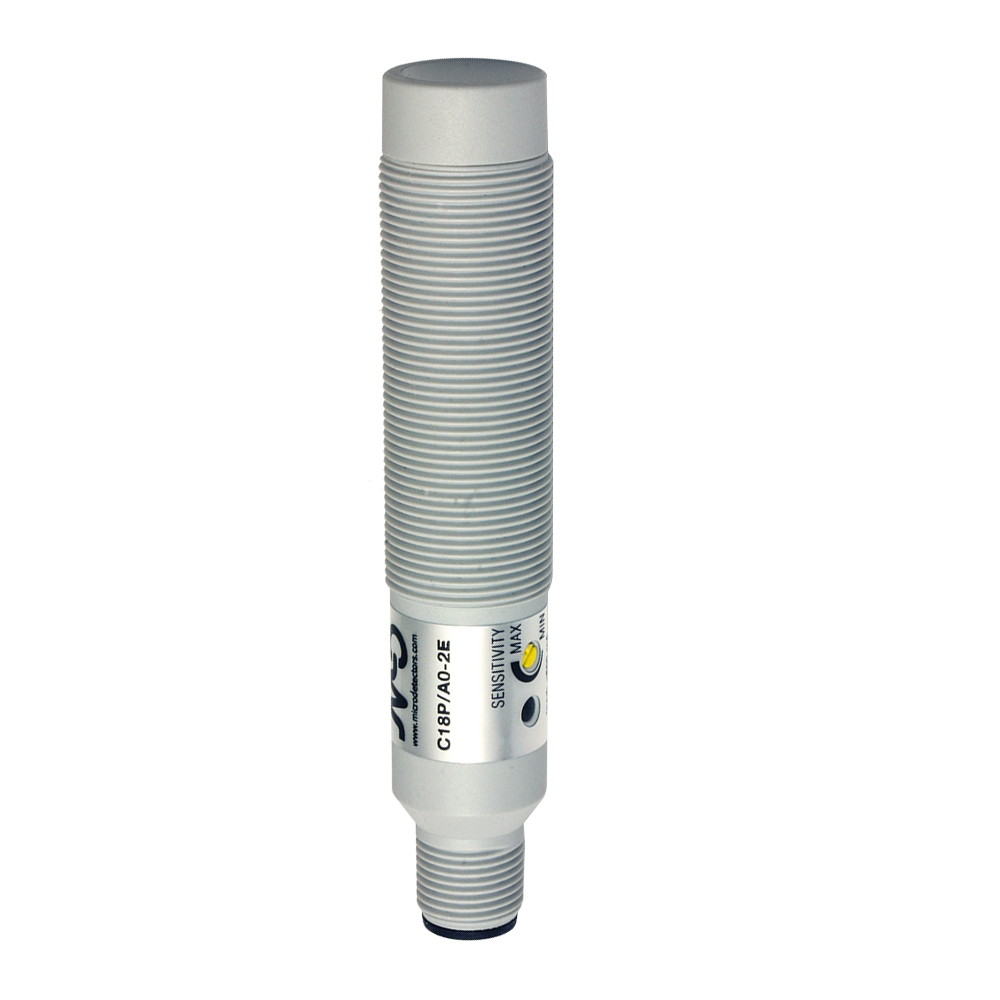

Capacitive sensor M18 Plastic Unshielded DC 12 mm PNP NO+NC conn. M12
Orderable item
-
Description
Overview DC or AC supply voltage High noise immunity Shielded and unshielded models Adjustable sensitivity Plastic housing
Technical Features
Detection propertiesNominal sensing distance 3…12mm Thermal drift of Sr < 20% Repeat Accuracy 5% Sensitivity adjustment Yes Hysteresis ≤ 20% OutputsOutput type PNP Output Function NO + NC Switching frequency 50Hz Electrical dataOperating Voltage 10...40Vdc No-Load supply current ≤ 12mA Load current ≤ 200mA Leakage current ≤ 100µA Output voltage drop ≤ 2,5V @ IL = 200mA Max ripple content ≤10% LED indicators Yellow LED (object detected) Time delay before availability ≤ 200ms Short-circuit protection polarity reversal, overvoltage Reverse Polarity Protection Yes Impulsive Overvoltage Protection Yes Mechanical dataMounting Unshielded Dimensions M18 x 1 / L = 91mm Weight 65g Housing Material Polyester Connections M12 plug Active Head Material Polyester Tightening torque 2,6Nm Operating temperature -35°C…+85°C (without freeze) Storage temperature -40°C…+85°C Diameter/Dimension M18 Test/ApprovalsApprovals CE cULus EMC compatibility IEC 60947-5-2 Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 Degree of protection IP67, IP68 AccessoriesSupplied Accessories screw driver, 2 x M18 nuts Generical DataDimensions M18 x 1 / L = 91mm Operating Temperature -35°C…+85°C (without freeze) Mechanical Protection IP67, IP68
