M12,P/N-NO/NC,Cabl,Sch/Ns-LD

Cap.M12,NPN/PNP-NO/NC,Cable,Sch/Nsch-LD

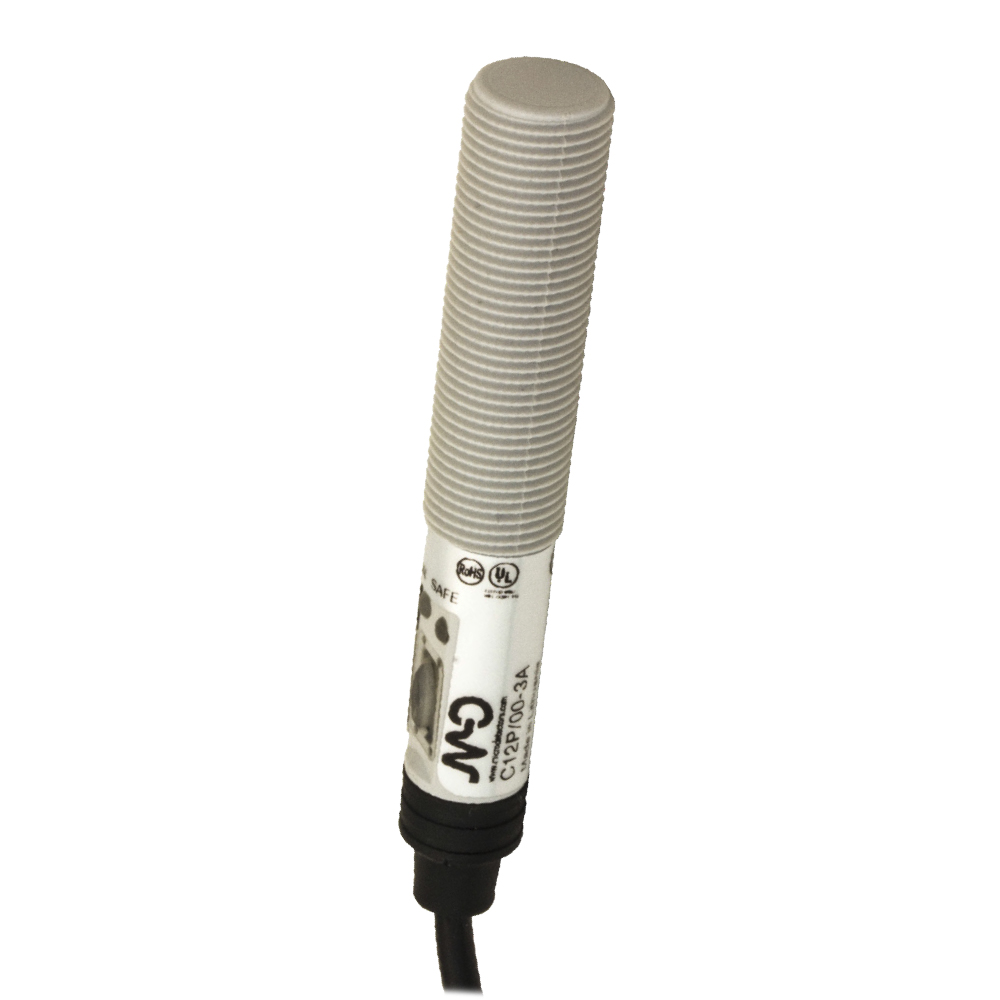

Capacitive sensor M12 Plastic Shielded DC 8 mm PNP/NPN NO/NC cable 2m axial

Article no.: C12P/00-3A
Orderable item
Register
  • Description
    Overview

    Technical Features

    Detection properties
    Nominal sensing distance 0,5…4mm shielded; 0,5…8mm unshielded
    Thermal drift of Sr < 20%
    Repeat Accuracy 5%
    Sensitivity adjustment Yes
    Hysteresis ≤ 20%
    Outputs
    Output type NPN/PNP
    Output Function NO/NC
    Switching frequency ≤15Hz
    Electrical data
    Operating Voltage 10...40Vdc
    No-Load supply current ≤ 12mA
    Load current ≤ 200mA
    Leakage current ≤ 300μA
    Output voltage drop ≤ 2,5V @ IL = 200mA
    Max ripple content ≤10%
    LED indicators Yellow LED (object detected), green LED power supply/stability
    Time delay before availability ≤ 200ms
    Short-circuit protection polarity reversal, overvoltage
    Reverse Polarity Protection Yes
    Impulsive Overvoltage Protection Yes
    Mechanical data
    Mounting Shielded/Unshielded
    Dimensions M12 x 1 / L = 78mm
    Weight 110g
    Housing Material Polyester
    Connections 2m PVC cable
    Active Head Material Polyester
    Operating temperature -35°C…+85°C (without freeze)
    Storage temperature -40°C…+85°C
    Diameter/Dimension M12
    Test/Approvals
    Approvals CE cULus
    EMC compatibility IEC 60947-5-2
    Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
    Degree of protection IP67
    Accessories
    Supplied Accessories 2 x M12 nuts
    Generical Data
    Dimensions M12 x 1 / L = 78mm
    Operating Temperature -35°C…+85°C (without freeze)
    Mechanical Protection IP67
