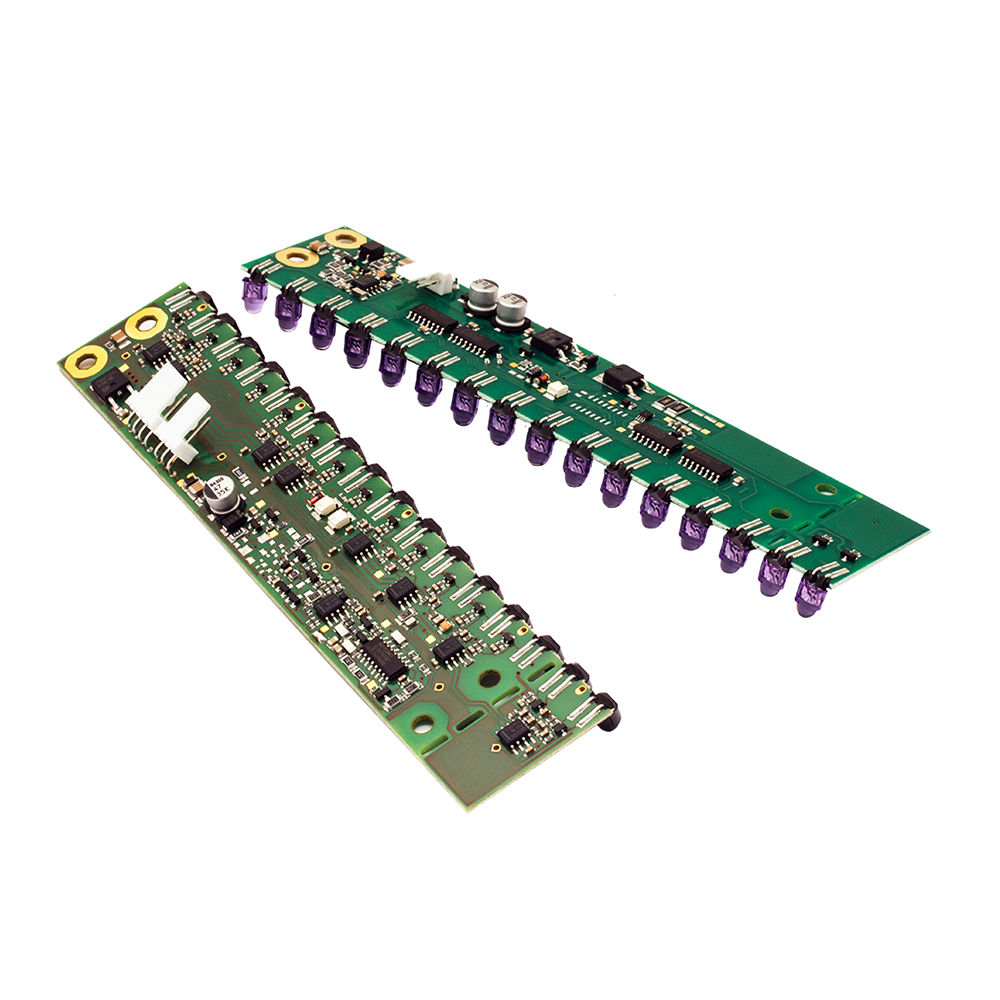

AreaSen,H=140mm-10mm pitch,E+R
Area Sen,H=140mm-10mm pitch,E+R Area sensor Kit E+R NPN NC 14 beams H=132mm 90° with sens. adj. with check Sn = 500mm....2000mm, 2D FILES, FILE 3D, CAD FILES, EU DECLARATIONS, SERIES CATALOGUE
Orderable item
-
Description
- Complete protection against electrical damages
- LED indicators
- Crossed beams detection
- Without housing
- 16 or 14 optics
- Detection of goods in automatic vending machines
- Detection of objects with irregular shape
Detection properties Nominal sensing distance 0,5 … 2m Beams space 10mm controlled height 130mm minimum detectable object Ø 5mm number of rays 14 Sensitivity adjustment Yes Application Function Principle emitter+receiver Outputs Output type NPN Output Function NC Switching frequency 130Hz Resposnse time for light/dark transition 500µs Resposnse time for dark/light transition 7ms Electrical data Operating Voltage 10…26VDC No-Load supply current 150mA (emitter) - 25mA (receiver) Load current 100mA Leakage current < 10µA @ 26V Output voltage drop ≤2V@100mA Max ripple content 10% LED indicators emitter: yellow (poweON and emission active) - receiver: red (signal level) - yellow (output state active) Time delay before availability < 85 ms Short-circuit protection Yes Reverse Polarity Protection Yes Emission Infrared (880nm) Interference to external light 1000lux (incandescent light) - 1500lux (sunlight) Impulsive Overvoltage Protection Yes Mechanical data Dimensions 140 x 36 x 18mm Weight 104g Connections With PCB connectors / Emitter, Conn. 3 MOLEX 22-05-7038 - Positive, Check, Common / Receiver, Conn. 1 MOLEX 22-05-7038 - Positive, Check, Common / Receiver, Conn. 2 MOLEX 22-05-7048 Positive, Check, Output, Common Operating temperature 0°C…+ 55° C (without freeze) Test/Approvals Degree of protection Not defined Generical Data Dimensions 140x36x18 Operating Temperature 0°C…+ 55° C (without freeze) Mechanical Protection Not defined -
