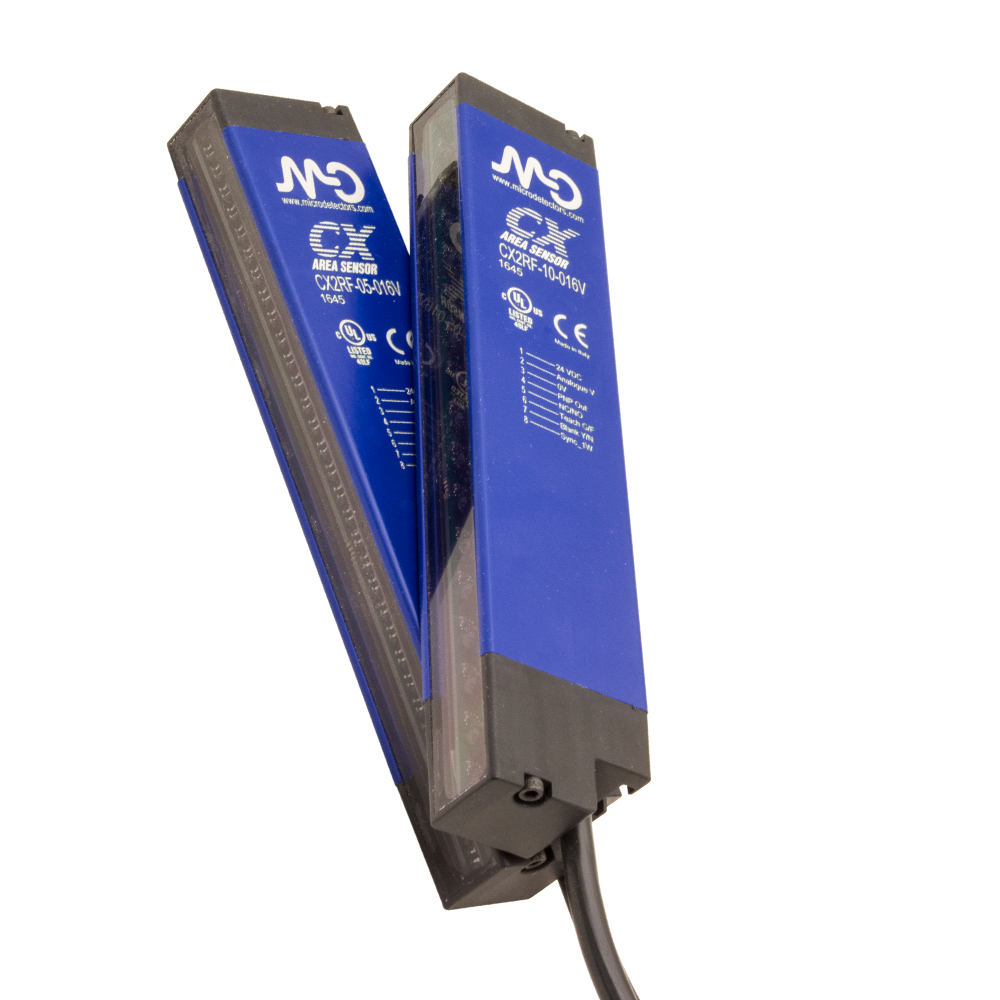

Area, H=32cm-1cm pitch,E+R,PNP
Area Sen, H=320mm-10mm pitch,E+R,PNP
Area sensor Intrinsic optical sync., full cross optical beams 16,8...30Vdc, P: 10 mm, H: 320 mm, Sn: 6m, one interconnected cable PNP
Orderable item
-
Description
Technical Features
Detection propertiesNominal sensing distance 1 … 6m Beams space 10mm controlled height 320mm minimum detectable object Ø 5mm number of rays 33 Sensitivity adjustment Teach-in by wire ApplicationFunction Principle emitter/receiver OutputsOutput type PNP Output Function NO/NC Switching frequency 75Hz Electrical dataOperating Voltage 16,8... 30Vdc No-Load supply current ≤330mA Load current < 100mA Leakage current ≤ 10µA Output voltage drop < 1,5V @ 100mA Max ripple content < 1,2Vpp LED indicators Blue, red and yellow (emitter) - green, red and yellow (receiver) Time delay before availability 200ms Short-circuit protection Yes Reverse Polarity Protection Yes Emission Infrared (880nm) Interference to external light IEC EN 60947-5-2 Impulsive Overvoltage Protection Yes Mechanical dataWeight 750g Housing Material Aluminium Connections M12 4pin + cable PVC 200mm ; M12 5pin + cable PVC 200mm Active Head Material PMMA Storage temperature - 25°C…+ 60° C (without freeze) Test/ApprovalsApprovals CE, cULus EMC compatibility IEC 60947-5-2 Shocks and vibrations IEC EN 60947-5-2 AccessoriesSupplied Accessories ST151 fixing kit Generical DataDimensions 329x36x20 Operating Temperature -10°C…+ 55° C (without freeze) Mechanical Protection IP67
