Retroreflecive Polarized Area sensor h = 69m, Sn 4,5m Push Pull NO/NC pig-tail M12 4pin

Article no.: CR0/0T-1V
In Stock
Register
  • Description

    Overview Area height controlled 69 mm Maximun operative distance up to 4.5 m Minimum object detection diam. 6mm Two teach-in types: fine and standard Optical pitch 10mm Protection degree IP67 Blanking function



    Technical Features

    Detection properties
    Nominal sensing distance 0,2 … 4,5m (with RL106G)
    Thermal drift of Sr ≤10%
    Beams space 10mm
    controlled height 69mm
    minimum detectable object Ø 3…7mm @ 2m RL106G - Ø 3…16mm @ 4,5m RL106G
    number of rays 6
    Sensitivity adjustment Teach in: fine < 3s; standard > 6s
    Application
    Function Principle Retroreflective polarized area sensor
    Outputs
    Output type Push-Pull
    Output Function NO/NC
    Switching frequency 400Hz
    Electrical data
    Operating Voltage 12...30VDC
    No-Load supply current 100mA
    Load current 160mA
    Leakage current ≤1μA
    Output voltage drop 1,6Vdc @ 100mA
    Max ripple content ≤ 10%
    LED indicators green: power supply-alignment; red: dark/light status
    Time delay before availability < 300ms
    Short-circuit protection Yes (autoreset)
    Reverse Polarity Protection Yes
    Emission Red (617nm)
    Interference to external light 5000lux (fluorescent lamp); 50000lux (sun light)
    Impulsive Overvoltage Protection Yes
    Mechanical data

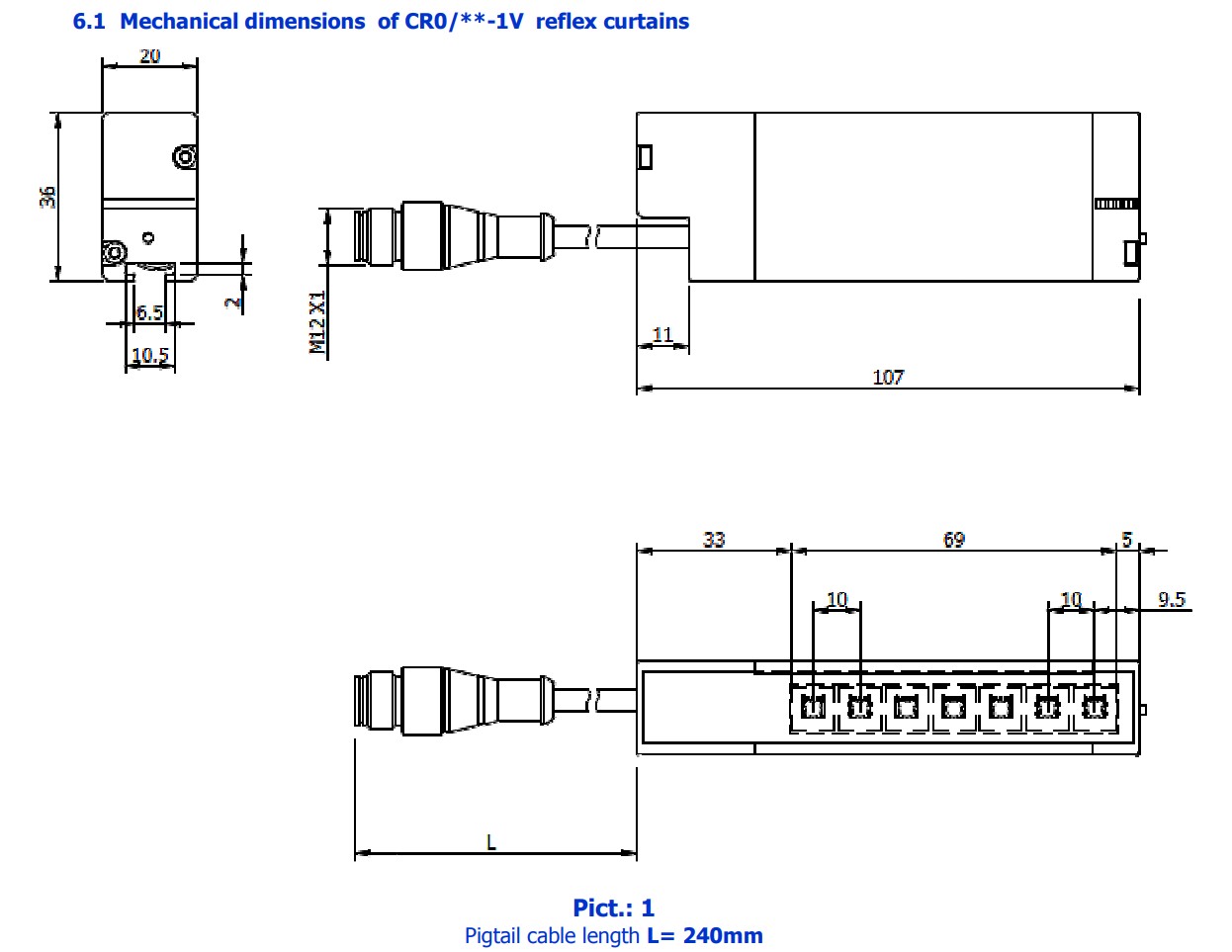

    Dimensions 107mm x 20mm x 36mm
    Weight 100g
    Housing Material Aluminim
    Connections M12 4pin + cable PVC 200mm
    Active Head Material PMMA
    Operating temperature -10°C…+ 55° C (without freeze)
    Test/Approvals
    Approvals CE, cULus,UKCA
    EMC compatibility EN 60947-5-2
    Shocks and vibrations IEC EN 60947-5-2 / 7.4
    Degree of protection IP67
    Accessories

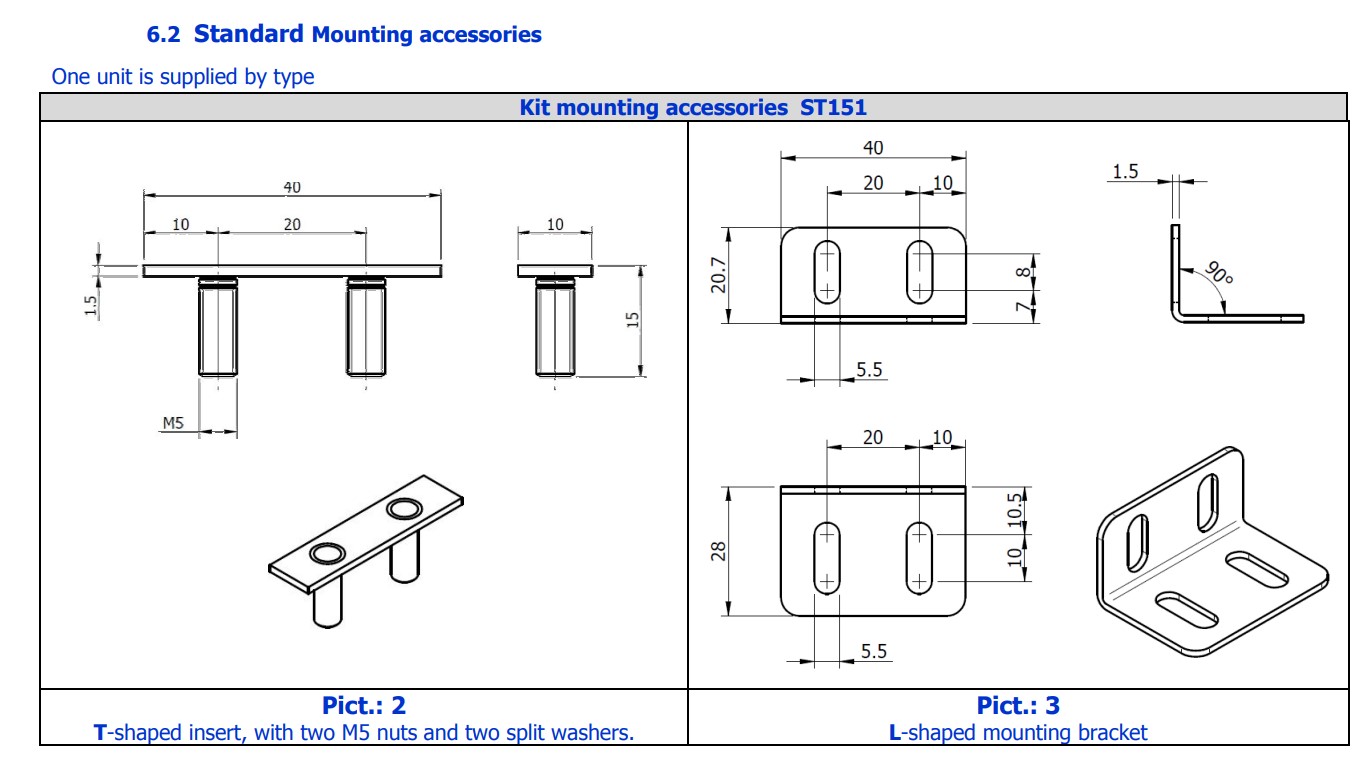

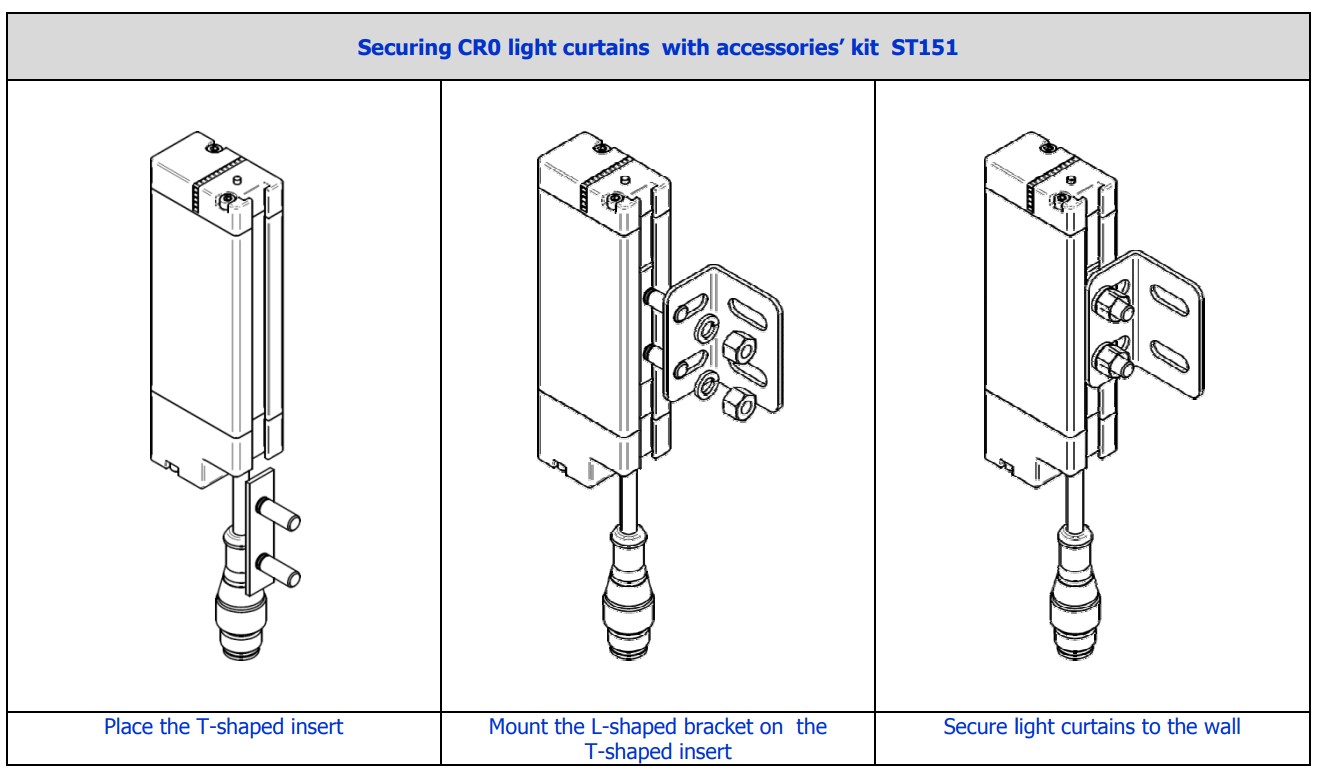

    Supplied Accessories RL106G reflector + fixing kit (ST151)
    Generical Data
    Dimensions 107x20x36
    Operating Temperature -10°C…+ 55° C (without freeze)
    Mechanical Protection IP67
