Area, H=309mm-10mm pitch,Refl

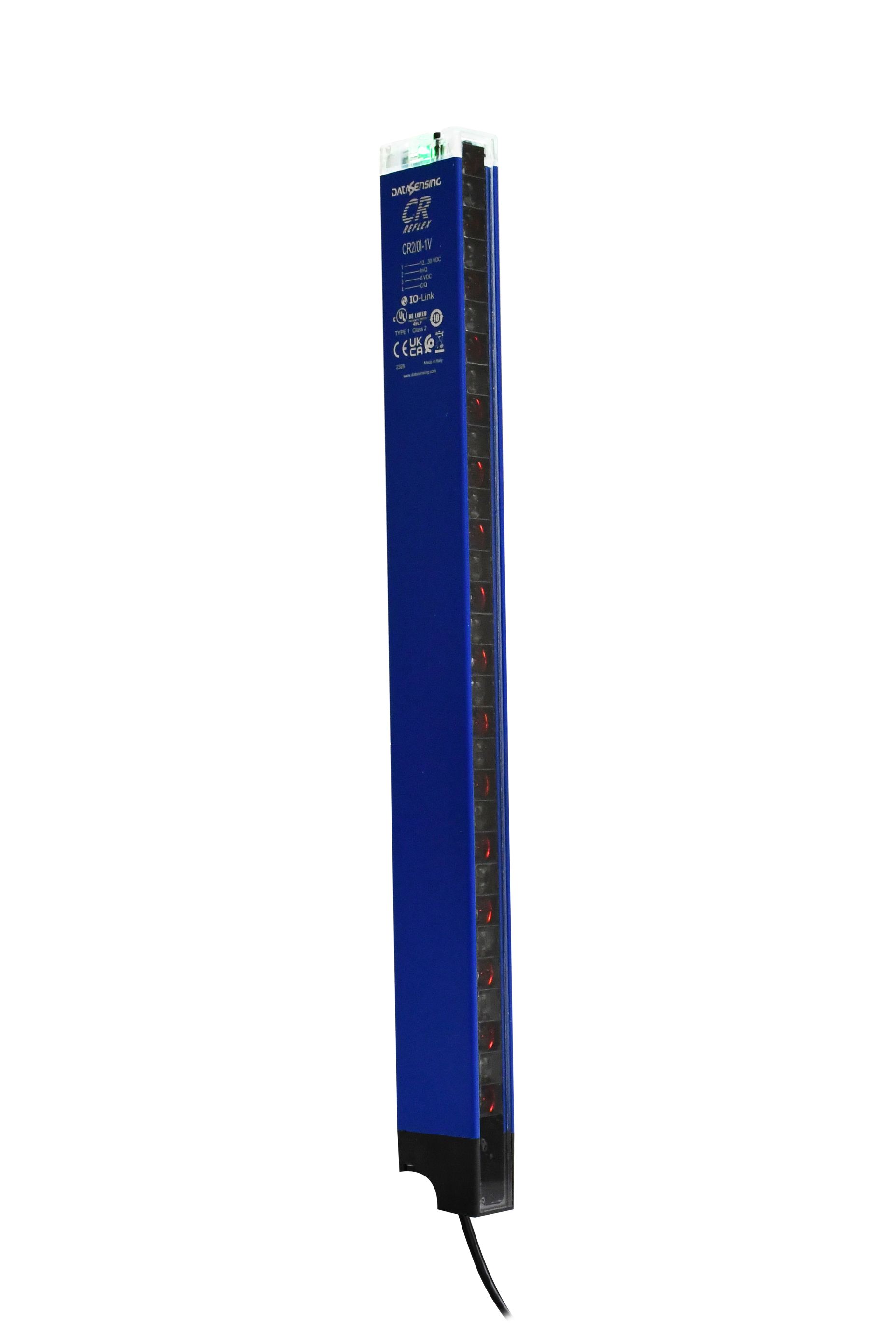

Area Sen, H=309mm-10mm pitch,Reflex Retroreflecive Polarized Area sensor h = 309mm, Sn 4,5m PNP+NPN NO/NC pig-tail M12 5pin, 2D FILES, FILE 3D, CAD FILES, SERIES CATALOGUE, USER MANUALS
Orderable item
-
Description
- Area height controlled 309 mm
- Maximum orwearive distance up 4,5m
- Two teach-in types: fine and standard
- Optical pitch 10mm
- Protection degree IP67
- Blanking function
Detection properties Nominal sensing distance 0,2 … 4,5m (with RL136) Thermal drift of Sr ≤10% Beams space 10mm controlled height 309mm minimum detectable object Ø 3…10mm @ 2m RL136 - Ø 3…20mm @ 4,5m RL136 number of rays 30 ( 16 emitters, 15 receivers) Sensitivity adjustment Teach in: fine < 3s; standard > 6s Application Function Principle Retroreflective polarized area sensor Outputs Output type NPN + PNP Output Function NO/NC Switching frequency 190Hz Electrical data Operating Voltage 12...30VDC No-Load supply current 150mA Load current 160mA Leakage current ≤1μA Output voltage drop 1,6Vdc @ 100mA Max ripple content ≤ 10% LED indicators green: power supply-alignment; red: dark/light status Time delay before availability < 1s Short-circuit protection Yes (autoreset) Reverse Polarity Protection Yes Emission Red (617nm) Interference to external light 5000lux (fluorescent lamp); 50000lux (sunlight) Impulsive Overvoltage Protection Yes Mechanical data Weight 310g Housing Material Aluminim Connections M12 5pin + cable PVC 200mm Active Head Material PMMA Test/Approvals Approvals CE, cULus,UKCA EMC compatibility EN 60947-5-2 Shocks and vibrations IEC EN 60947-5-2 / 7.4 Accessories Supplied Accessories Q.ty 2 RL136 reflector + fixing kit (ST151) Generical Data Dimensions 347x20x36 Operating Temperature -10°C…+ 55° C (without freeze) Mechanical Protection IP67 -
