Area Sen, H=70mm-6mm pitch,Rec
Area Sen, H=70mm-6mm pitch,Receiver

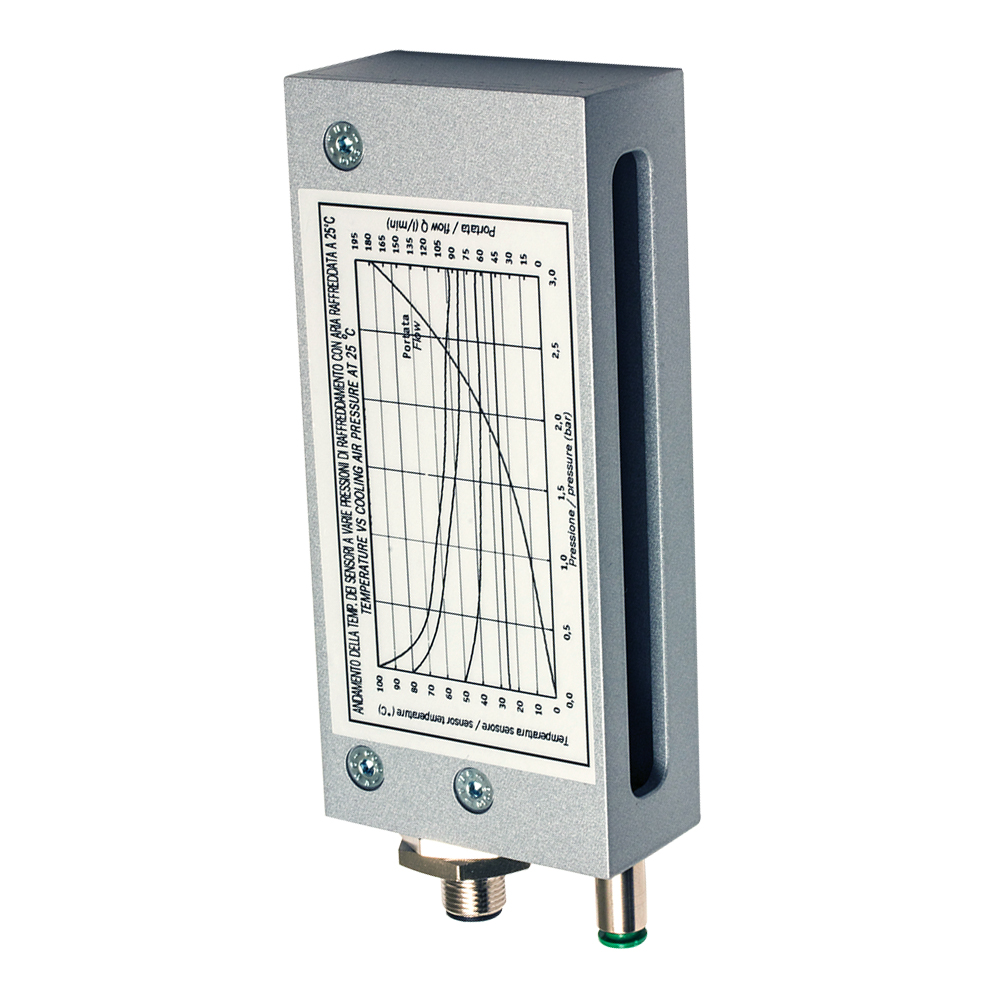

Area sensor Receiver 12...24Vdc crossed beam H = 70 mm Sn = 2m 10ms PNP NO/NC M12 4 pin with aluminium enclosure H = 70 mm Sn = 2,5 m
Orderable item
-
Description
Overview Controlled heightt 70 mm Operating distance up to 2 m Microprocessor based circuit Sensitivity adjustment Strong cubic housing Special version with metallic enclosure for high-duty use Protection degree IP67 Complete protection against electrical damages
Technical Features
Detection propertiesNominal sensing distance 0,3 … 2,5m Thermal drift of Sr ≤10% Beams space 6mm controlled height 70mm minimum detectable object Ø 5mm number of rays 12 ApplicationFunction Principle Receiver OutputsOutput type PNP Output Function NO/NC Response time 10ms Electrical dataOperating Voltage 12…24 VDC No-Load supply current 50mA Load current ≤100mA Leakage current 10µA Output voltage drop ≤1.2V Iload =100mA Max ripple content ≤ 10% LED indicators Green (powerON), red (alignment), yellow (output state) Time delay before availability 500ms Short-circuit protection Yes (auto reset) Reverse Polarity Protection Yes Interference to external light 1.500 lux max. (incandescent lamp), 4.500 lux max. (sunlight) Impulsive Overvoltage Protection Yes Mechanical dataDimensions 60mm x 132mm x 30mm Weight 260 … 300g Housing Material PBT Connections M12 plug Active Head Material PC Tightening torque 25Nm Operating temperature -25°C…+50°C (without freeze) Storage temperature -40°C…+80°C Test/ApprovalsApprovals CE cULus EMC compatibility IEC 60947-5-2 Shocks and vibrations IEC EN 60947-5-2 Degree of protection IP67 AccessoriesSupplied Accessories 2 nuts M18x1 - 1 adjustment key - 1 90°angled brackets Generical DataDimensions 60x132x30 Operating Temperature -25°C…+50°C (without freeze) Mechanical Protection IP67
