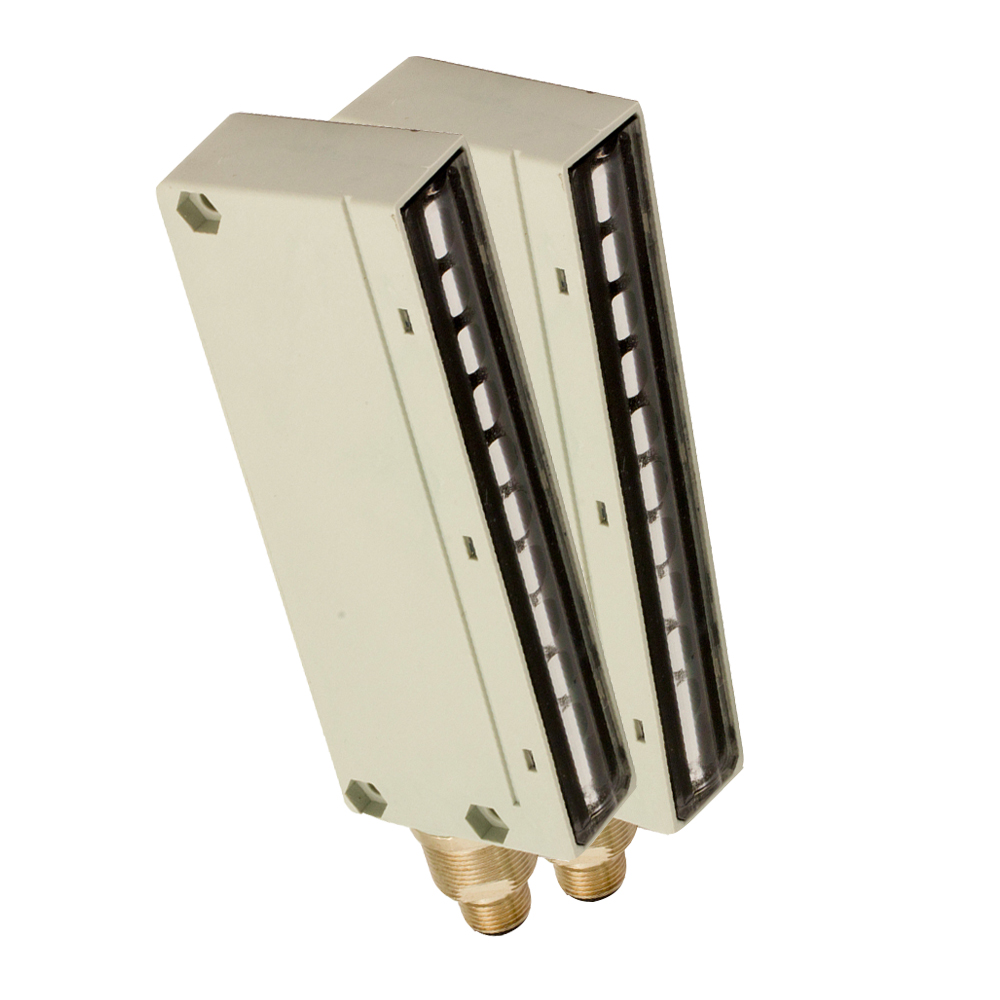

Area,H=9cm-10mm pitch,E+R,ATEX
Area Sen, H=90mm-10mm pitch,E+R
Area sensor kit 10...26Vdc 10 beams adj. P+N DO conn. M12 H = 90 mm Sn = 6 m II 3G Ex nA IIC T6, II 3D Ex tD A22 IP67 T85°C
Orderable item
-
Description
Technical Features
Detection propertiesNominal sensing distance 0,3 … 6m Thermal drift of Sr ≤10% Beams space 10mm controlled height 90mm minimum detectable object Ø 5mm number of rays 10 Sensitivity adjustment Trimmer ApplicationFunction Principle Emitter- Receiver Emitter/Receiver Code BX10SR/0A-HB6AAN Emitter Code BX10S/00-HB6AAN Receiver Code BX10R/AD-HB6AAN OutputsOutput type NPN + PNP Output Function NO Switching frequency 110Hz Resposnse time for light/dark transition 500µs Resposnse time for dark/light transition 5ms Electrical dataOperating Voltage 10…26VDC No-Load supply current 75mA Load current ≤100mA Leakage current 10μA Output voltage drop ≤2V Iload = 100mA Max ripple content ≤ 10% LED indicators Emitter: Green (powerON) Receiver: Yellow (output state) Red (alineament) Time delay before availability ≤ 85ms Short-circuit protection autoreset Reverse Polarity Protection Yes Emission Infrared Interference to external light 1000lux (incandescent lamp), 1500lux (sunlight) Impulsive Overvoltage Protection Yes Mechanical dataWeight 230g Housing Material PBT Connections M12 Plug Active Head Material PC Tightening torque 25Nm Test/ApprovalsApprovals CE cULus Ex: II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc EMC compatibility EN 60947-5-2 AccessoriesSupplied Accessories 4 nuts M18x1 - 1 adjustment key - 2 90°angled brackets Generical DataDimensions 45x145x20 Operating Temperature 0°C…+ 50° C (without freeze) Mechanical Protection IP67
