AS1-HD-SR-010-J D 3m RES 5mm H 100mm

AS1-HD-SR-010-J

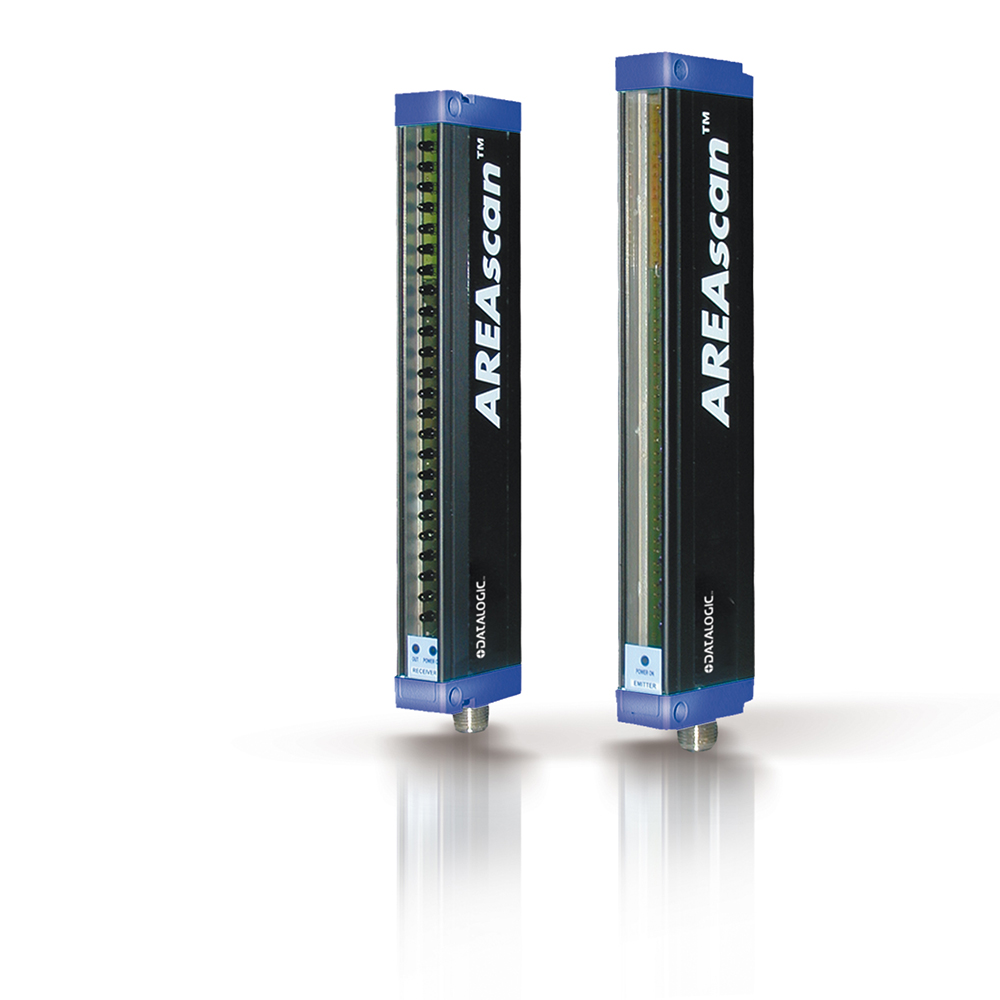

Photoelectric Sensor Area Light grids Dimensional array 100 mm. long distance standard resolution - M12

Article no.: 958101030
Orderable item
Register
  • Description
    Overview Crossed beam area sensors100mm controlled heightAdjustment trimmerOptical or wire synchronismScan Mode input

    Technical Features

    Detection properties
    Nominal sensing distance 0,3…3m
    controlled height 100mm
    minimum detectable object Flat: 0,2x200mm Cylindrical: Ø18mm
    number of rays 6
    Sensitivity adjustment n/a
    Application
    Function Principle Emitter- Receiver
    Description Slim profile - Low res. 18 mm
    Functions Light array for detection
    Outputs
    Output type PNP - Dark mode
    Output Function Dark ON
    Response time 1,7ms
    Electrical data
    Operating Voltage 20,4…27,6VDC
    No-Load supply current ≤190mA
    Load current ≤100mA
    Output voltage drop ≤1,5V Iload = 100mA
    LED indicators Yellow (output state) Green (PowerON)
    Emission Infrared (880nm)
    Mechanical data
    Dimensions 22x150x43
    Weight 300g
    Housing Material Aluminium
    Connections M12 Plug
    Active Head Material PMMA
    Material Metal - Aluminium / PMMA
    Test/Approvals
    Approvals CE cULus
    Accessories
    Supplied Accessories Fixing brakets
    Generical Data
    Dimensions 22x150x43
    Operating Temperature 0°C…+ 50° C
    Mechanical Protection IP65
