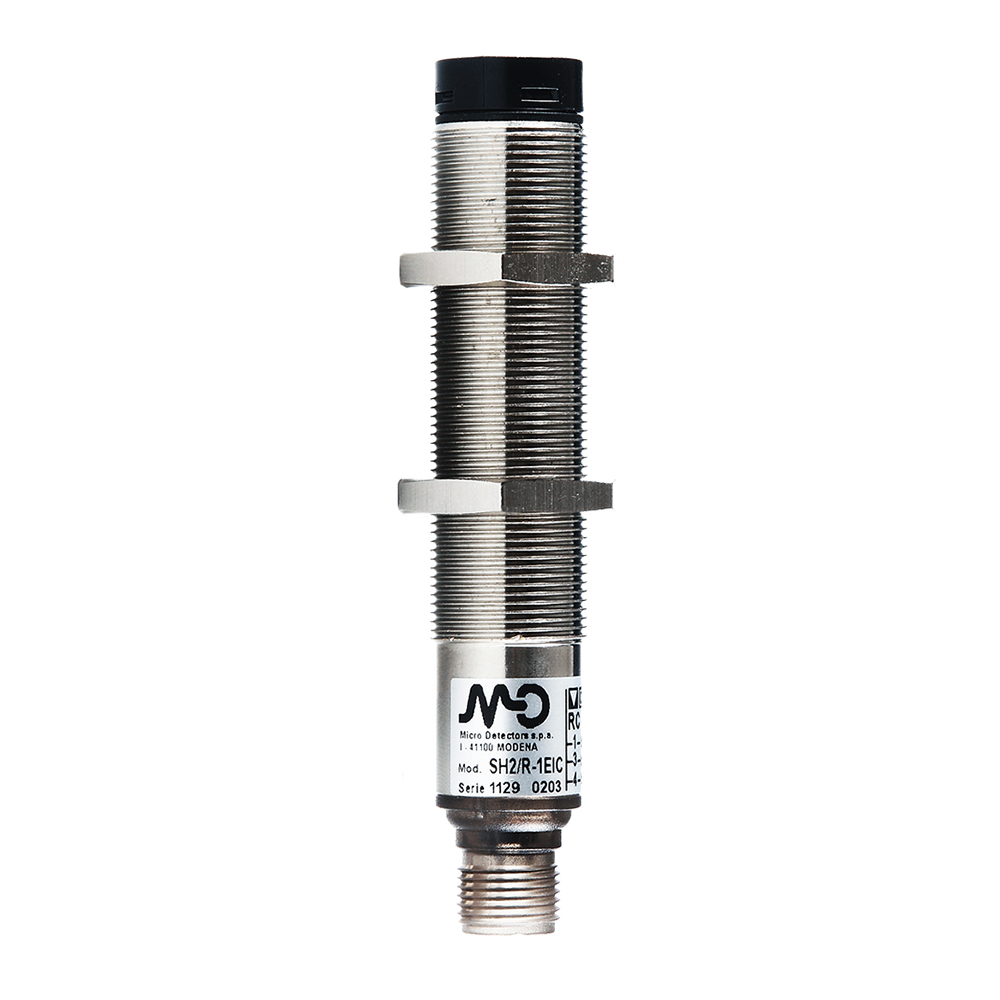

Saf,M18,Receiver,M12,Type 4

Safety,M18,Receiver,M12 plug,Type 4
Safety sensor Type 4 PLe Receiver M18 11m metal. axial conn.M12 I/O IEC61131-2 f = 123 kHz, to be used in conjunction with SBCR03 control unit

Article no.: SH4/R-1EIA
Orderable item
Register
  • Description
    Overview M18 Models 10 m (axial optic) and 5 m (radial optic) operating distance M30 models 60 m operating distance EN50100 Category 2 and Category 4 compliant LED indicators Plastic and Metal Housing Inputs and Outputs IEC61131-2 compliant and adaptable with any safety module To be used together with a Category 2 or Category 4 safety control unit to obtain a safety system EN ISO 13849 compliant

    Technical Features

    Detection properties
    Nominal sensing distance 10m (ExG=4)
    Thermal drift of Sr ≤ 10%
    Resolution Single-beam
    controlled height Single-beam
    Effective Aperture Angle ≤ ±2,5°
    Effective Aperture Angle Typical ±1,8°
    Application
    Function Principle Receiver
    Control unit to be used SBCR03
    Description M18 Type 4 Safety Photocell Receiver
    Safety parameters
    Type Type 4 safety photocell
    SIL 3
    SILCL 3
    PL e
    PFHd 8,10E-10
    MTTFd 20 years
    Outputs
    Output type Totem-pole
    Output Function To be connectred to SBCR03
    Resposnse time for light/dark transition 200µs
    Resposnse time for dark/light transition 400µs
    Electrical data
    Operating Voltage 10 … 30 Vdc
    No-Load supply current ≤ 25mA
    Load current ≤ 70mA
    Output voltage drop 2,5V @ 50mA
    Max ripple content ≤ 5 Vpp
    LED indicators Yellow (alignement)
    Mechanical data
    Dimensions M18
    Housing Material PBT
    Connections M12 plug
    Active Head Material Glass
    Operating temperature -20°C … +55°C
    Storage temperature -40°C … +75°C
    humidity 15% … 95%
    Test/Approvals
    Approvals CE, TÜV
    Shocks and vibrations 10g - 16ms (according to IEC600068-2-29) 10Hz…55Hz - 1 oct/min - 0,35mm (according to 60068-2-6)
    Degree of protection IP67
    Accessories
    Supplied Accessories 2 x nuts
    Generical Data
    Dimensions M18
    Operating Temperature -20…+55°C (Without freeze)
    Humidity 15% … 95%
    Mechanical Protection IP67
