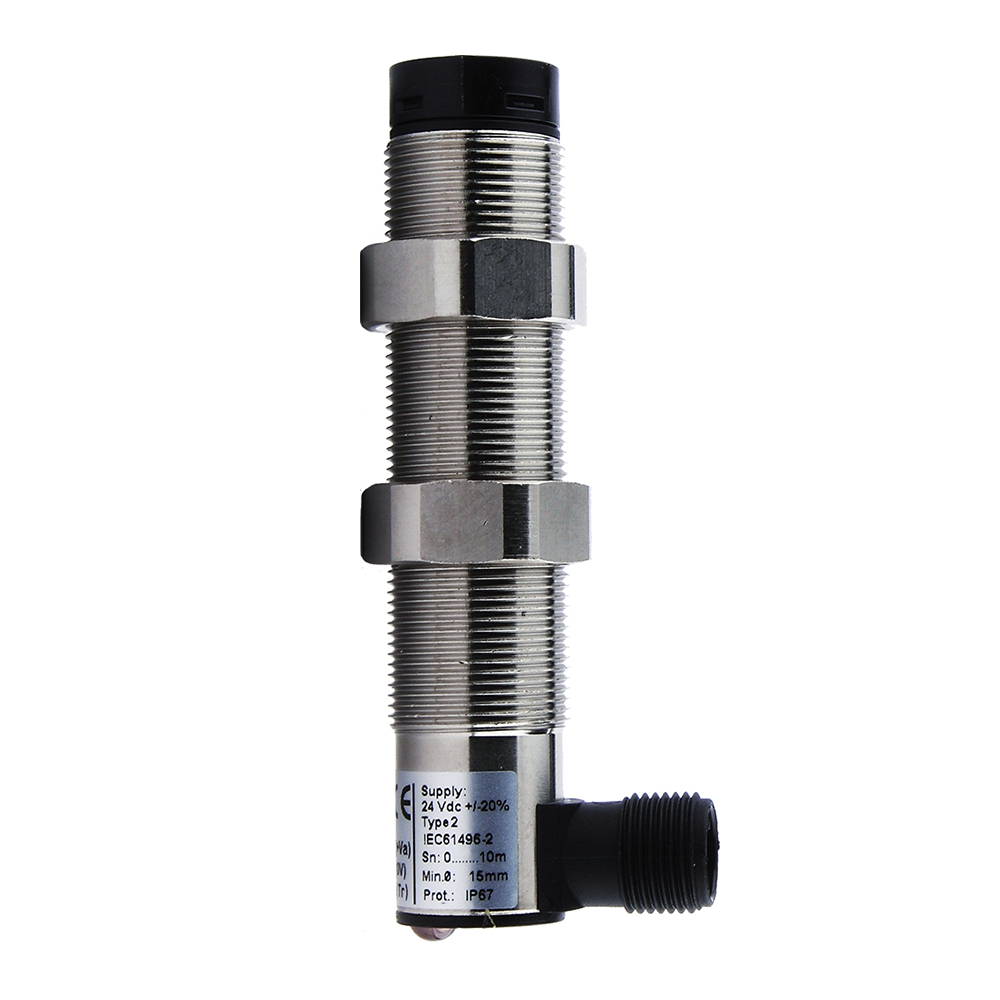

Safety,M18,Receiver,M12 90°,Type 2 Safety sensor Type 2 PLc Receiver M18 11m metal. axial conn. M12 90° I/O IEC61131-2 f = 123 kHz (do not use in conjunction with SBCR03 control unit), 2D FILES, FILE 3D, CAD FILES, SERIES CATALOGUE, USER MANUALS
Orderable item
-
Description
- M18 Models 10 m (axial optic) and 5 m (radial optic) operating distance
- M30 models 60 m operating distance
- EN50100 Category 2 and Category 4 compliant
- LED indicators
- Plastic and Metal Housing
- Inputs and Outputs IEC61131-2 compliant and adaptable with any safety module
- To be used together with a Category 2 or Category 4 safety control unit to obtain a safety system EN ISO 13849 compliant
Detection properties Nominal sensing distance 10m (ExG=4) Thermal drift of Sr ≤ 10% Resolution Single-beam controlled height Single-beam Effective Aperture Angle ≤ ±5° Effective Aperture Angle Typical ±1,8° Application Function Principle Receiver Notes not working with SBCR03 control unit. To be used with external safety control unit with automatic optics test function Description M18 Type 2 Safety Photocell Receiver Safety parameters Type Type 2 safety photocell SIL 1 SILCL 1 PL c PFHd 1,00E-06 MTTFd 20 years Outputs Output type Totem-pole Resposnse time for light/dark transition 200µs Resposnse time for dark/light transition 400µs Electrical data Operating Voltage 10 … 30 Vdc No-Load supply current ≤ 25mA Load current ≤ 70mA Output voltage drop 2,5V @ 50mA Max ripple content ≤ 5 Vpp LED indicators Yellow (alignement) Mechanical data Dimensions M18 Housing Material PBT Connections M12 plug Active Head Material Glass Operating temperature -20°C … +55°C Storage temperature -40°C … +75°C humidity 15% … 95% Test/Approvals Approvals CE, TÜV Shocks and vibrations 10g - 16ms (according to IEC600068-2-29) 10Hz…55Hz - 1 oct/min - 0,35mm (according to 60068-2-6) Degree of protection IP67 Accessories Supplied Accessories 2 x nuts Generical Data Dimensions M18 Operating Temperature -20…+55°C (Without freeze) Humidity 15% … 95% Mechanical Protection IP67 -
