S300-PR-5-G00-EX-M-SG-ST2 EMI M12 DEFOG

S300-PR-5-G00-EX-M-SG-ST2

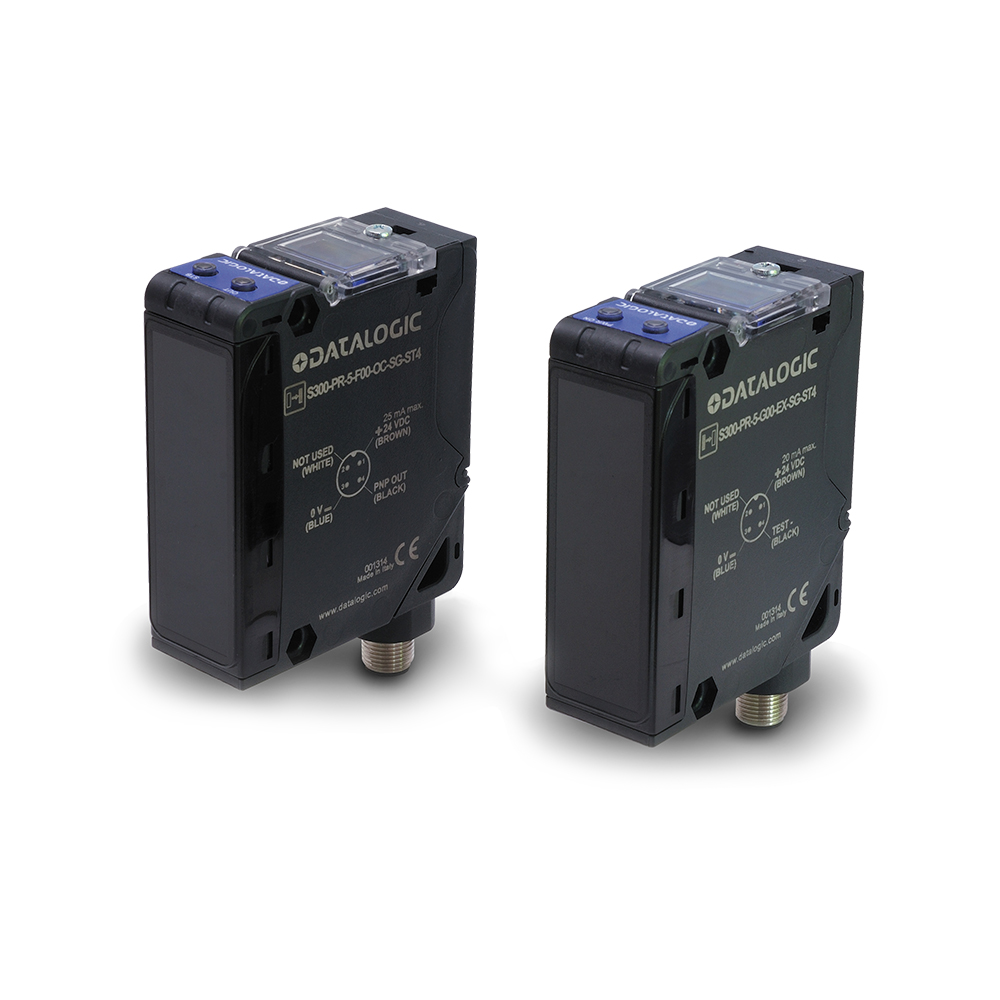

S300 rectangular infrared single beam safety sensor type 2 emitter defogging

Article no.: 951451330
In Stock
Register
  • Description
    Overview Installation FlexibilityLong distanceLow temperature with defogging function 4 safety areas controlled with one unitDouble mutingSENSORSEmitter-receiver photocells with test inputType 2 and Type 4 modelsPlastic tubular and MAXI formatsUp to 50m operating distanceClass 1 red laser emission models up to 40Standard M12 connectorsCONTROL UNITS:Integrated control of 4 single beams and 2 light curtainsSimple DIP Swicth configurationMuting functions can be assigned to light curtains or single beams

    Technical Features

    Detection properties
    Nominal sensing distance 0 … 50 m
    Resolution Single-beam
    controlled height Single-beam
    Sensitivity adjustment n/a
    Effective Aperture Angle ≤ ±5°
    Application
    Function Principle Emitter
    Control unit to be used SG-BWS-T4 Series
    Description MAXI Type 2 Safety Photocell Emitter with Defogging System
    Optic position Radial 90°
    Functions Emitter with defogging for SG-BWS-T4
    Safety parameters
    Type Type 2 safety photocell
    PL n/a
    PFHd n/a
    Outputs
    Output type n/a
    Switching frequency
    Response time n/a
    Electrical data
    Operating Voltage 24 Vdc ±15%
    No-Load supply current
    Load current
    Output voltage drop
    LED indicators Green (POWER ON)
    Short-circuit protection YES
    Reverse Polarity Protection Yes
    Emission LED Infrared
    Interference to external light according to EN 60947-5-2 : 2020
    Impulsive Overvoltage Protection Yes
    Insulation resistance >20 MΩ 500 Vdc, between electronics and housing
    Contact resistance 500 Vac 1 min., between electronics and housing
    Mechanical data
    Dimensions 25x85x70
    Housing Material PBT Fiber Glass reinforced
    Connections M12 plug
    Active Head Material PMMA
    Storage temperature -25…+70°C
    Material Plastic - PBT / PC
    Diameter/Dimension
    Vibrations Width 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6)
    Shocks 16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29)
    Test/Approvals
    Approvals CE, cULus
    Shocks and vibrations 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6)
    Generical Data
    Dimensions MAXI
    Operating Temperature - 25…+55°C (Without freeze)
    Mechanical Protection IP67
