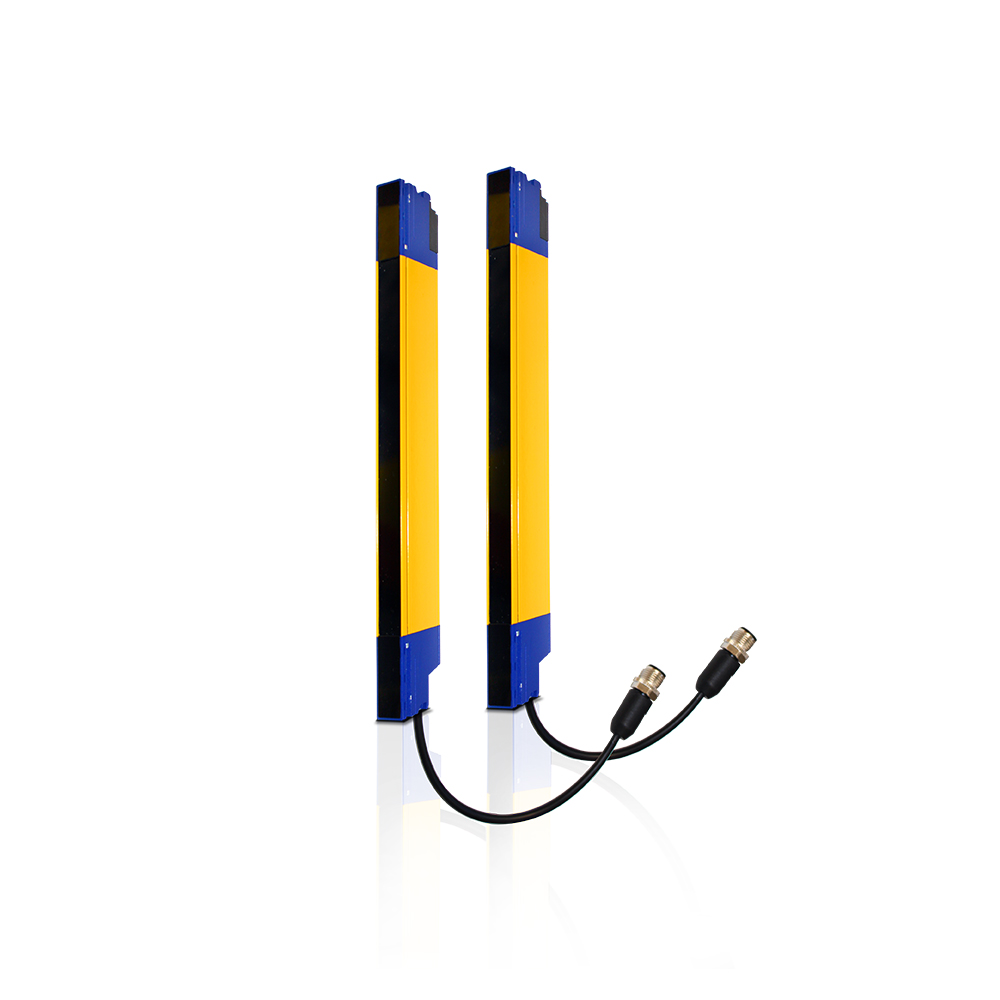

SLIM safety light curtain type 2 res = 14 mm h = 900 mm edm man/auto

Article no.: 957911250
In Stock
Register
  • Description
    Overview Highest mechanical flexibility for a perfect fit into machine structures Simple commissioning and maintenance High functional performance SLIM profile: 15 x 32 mm Pigtail cable with 5-pole M12 connectors Same cable for Emitter and Receiver No Dead Zone 14, 24 and 34 mm resolution 34 different protection lengths, with 30 mm modularity 3 different brackets shapes Cascadable up to 3 units Auto/Manual restart and EDM function configuration by wiring LED display messages diagnosis

    Technical Features

    Detection properties
    Nominal sensing distance 0,2 … 6 m
    Resolution 14mm
    controlled height 900 mm
    number of rays 90
    Sensitivity adjustment n/a
    Effective Aperture Angle ≤ ±5°
    Application
    Function Principle Emitter + Receiver
    Available functions Manual/Automatic Restart, EDM
    Description SLIM no-dead-zone cascadable
    Functions Finger protection res. 14 mm
    Safety parameters
    Type Type 2 safety light curtain (A/M)
    SIL 1
    SILCL 1
    PL c
    PFHd 1,04E -08
    MTTFd 273 years
    Outputs
    Output type 2 x PNP-NO (OSSD safety output) with EDM
    Response time 14,1 ms
    Response Time (Master + Slave) 18 ms
    Response Time (Master + 2 Slave) 20 ms
    Electrical data
    Operating Voltage 24 Vdc ± 20%
    Load current ≤ 500mA each output
    Emission Infrared LED (850 nm wavelength)
    Interference to external light According to IEC 61496-2
    Power Consumption - Receiver ≤ 4,2W (no load)
    Power Consumption - Emitter ≤ 1,6W
    Cabel Length (Power Supply/Output) ≤ 20m
    Cable Length for Master Slave Interconnections ≤ 1m (Master-Slave Cable)
    Mechanical data
    Dimensions 15x33x900
    Connections M12-5 poles pig-tail (emitter) M12-5 poles pig-tail (receiver)
    Storage temperature -25…+ 70°C
    Material Metal - Aluminium / PMMA / Painted Zamak
    Vibrations Width 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6)
    Shocks 16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29)
    Test/Approvals
    EMC compatibility According to 2014/30/EU Directive
    Accessories
    Supplied Accessories C-shaped Brackets (included): 2 pcs kit + O-shaped Brackets (included): 4 pcs kit
    Generical Data
    Dimensions 15,4x32,6x900 mm
    Operating Temperature -10…+55°C
    Humidity 15 … 95 % (no condensation)
    Mechanical Protection IP65
