SH4-30-0300-B-5

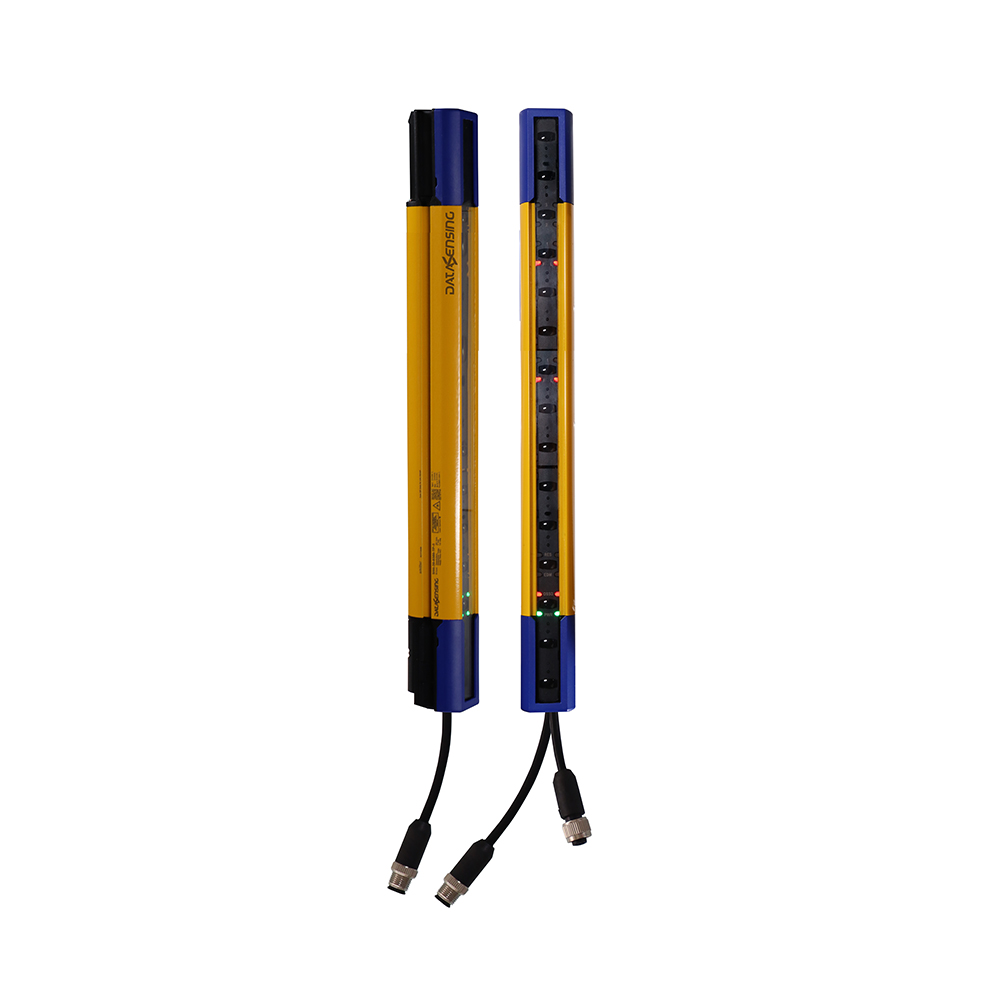

SH4 BASE Res = 30 mm h = 300 mm 5 poles auto restart

Article no.: 957920057

Orderable item

Overview Hand protection (30 mm) Improved operating range: 20 m Basic functions: alignment, automatic restart Zero dead zone Extended monitored height up to 2250 mm Compact profile (35 x 40 mm), common to all SH4 line Installation eased by LEDs indications of beam intensity Optical synchronization with 2 beams IP67 Protection -30 … +55 °C Operating temperature Complete couple and angular bracket included in the package Aligment eased by integrated laser (finger,hand) or LED (body) aimer Pigtails with M12 connectors with standard not shielded cables

Technical Features

Detection properties

Nominal sensing distance	0.2 … 20 m
Resolution	30 mm
controlled height	300 mm
number of rays	30
Effective Aperture Angle	≤ ±2.5°

Application

Function Principle	Emitter + Receiver
Available functions	Automatic Restart
Description	Compact no-dead-zone BASIC
Functions	Finger protection res. 30 mm

Safety parameters

Type	Type 4 safety light curtain (A)
SIL	3
SILCL	3
PL	e
PFHd	8,40E-09
MTTFd	43 years
SFF	99,50%

Outputs

Output type	2 x PNP-NO (OSSD safety output)
Response time	7 ms

Electrical data

Operating Voltage	24 Vdc ± 20%
Load current	≤ 250mA each output
Emission	Infrared LED (850 nm wavelength)
Interference to external light	According to IEC 61496-2
Power Consumption - Receiver	≤ 4W (no load)
Power Consumption - Emitter	≤ 3,5W
Capacitive Load	≤ 1µF
Cabel Length (Power Supply/Output)	≤ 30m

Mechanical data

Connections	M12-5 poles pigtail (emitter) M12-5 poles pigtail (receiver)
Storage temperature	-30 …+70 °C
Material	Painted aluminum / MAKROLON AR 7099 Clear PC / PBT
Vibrations	10 mm / 3 g, 5 … 150 Hz frequency (EN 60068-2-6 / Class 3M7 IEC TR 60721-4-3)
Shocks	25 g x 6 ms x 600 (EN 60068-2-27 / Class 3M7 IEC TR 60721-4-3)

Test/Approvals

Approvals	CE, cULus, TÜV, UKCA
EMC compatibility	According to 2014/30/EU Directive
Shocks and vibrations	10 mm / 3g, 5 to 150 Hz frequency (EN 60068-2-6 / Class 3M7 IEC TR 60721-4-3); 25g x 6 ms x 600 (EN 60068-2-27 / Class 3M7 IEC TR 60721-4-3)

Accessories

Supplied Accessories	Standard "L" Mounting Brackets: 4 pcs kit
Accessories to be ordered separately	Top-bottom rotating mounting bracket ST-K4ROT-SH

Generical Data

Integrated aimer	Integrated laser pointer
Dimensions	35x40x309 mm
Operating Temperature	-30…+55°C
Humidity	15 … 95 % (no condensation)
Mechanical Protection	IP65, IP 67 (EN 60529)
