SG4-30-105-OP-B

SG4-30-105-OP-B

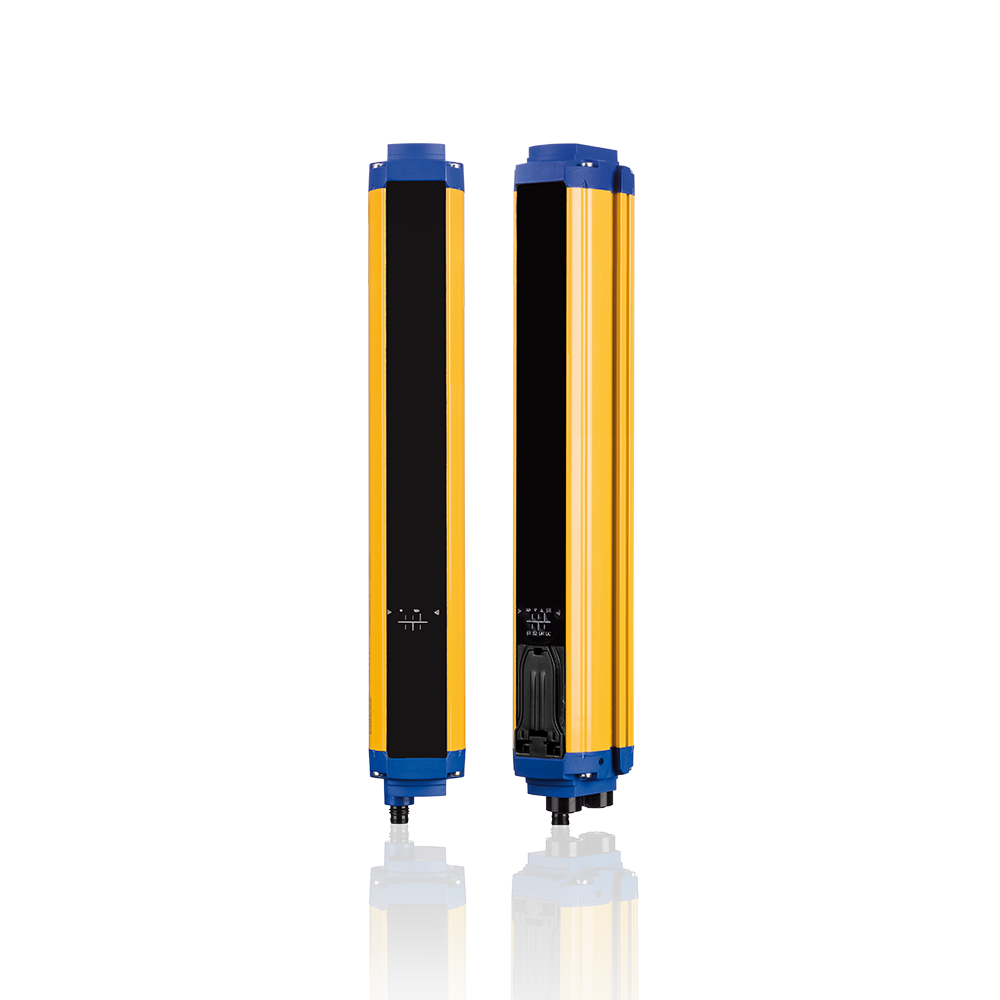

SG4 FIELDBUS BASE safety light curtain type 4 res = 30 mm h = 1050 mm openSAFETY/POWERLINK

Article no.: 957901950
Orderable item
Register
  • Description
    Overview Fast and easy installation, configuration and maintenance Complete diagnostic and monitoring available over the communication bus Basic models: classic functions available Advanced models: each beam status safe information available Two M12 connectors on receiver side for POWERLINK connection M8 connectors on emitter and receiver for power supply Up to 19m operating range and 1800m protected height Finger, hand and body protection Compact dimensions (35 x 42 mm section) POWERLINK node address configurable with selector switches Functions available in combination with B&R safety controller SL and SLX: auto/manual restart, EDM, Muting, Override Functions available for advanced models in combination with B&R safety controller SL: fixed blanking, floating blanking, partial and dynamic muting, warning areas, measurement

    Technical Features

    Detection properties
    Nominal sensing distance 0,2 … 19 m
    Resolution 30mm
    controlled height 1050 mm
    number of rays 56
    Sensitivity adjustment GUI
    Effective Aperture Angle ≤ ±2,5°
    Application
    Function Principle Emitter + Receiver
    Available functions OpenSAFETY/POWERLINK Basic Functions
    Description Compact - OpenSAFETY/POWERLINK Basic functions
    Functions Hand prot. res. 30 mm openSAFETY
    Safety parameters
    Type Type 4 safety light curtain (A/M)
    SIL 3
    SILCL 3
    PL e
    PFHd 1,02E-08
    Dcavg 98,80%
    MTTFd 118 years
    Outputs
    Output type POWERLINK
    Response time 29 ms
    Electrical data
    Operating Voltage 24 Vdc ± 20%
    Load current ≤ 500mA each output
    Emission Infrared LED (940 nm wavelength)
    Interference to external light According to IEC 61496-2
    Power Consumption - Receiver ≤ 5W (no load)
    Power Consumption - Emitter ≤ 3W
    Cabel Length (Power Supply/Output) ≤ 50m
    Mechanical data
    Dimensions 35x42x1132
    Connections M8-4 poles (emitter) M8-4 poles + 2x M12-4 poles D-Coded (receiver)
    Storage temperature -25…+ 70°C
    Material Painted aluminum / PMMA / PBT Valox 508
    Vibrations Width 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6)
    Shocks 16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29)
    Test/Approvals
    EMC compatibility According to 2014/30/EU Directive
    Accessories
    Supplied Accessories Standard "L" Mounting Brackets: 4 pcs kit
    Generical Data
    Network Interface openSAFETY/POWERLINK
    Dimensions 35x41,9x1131,8 mm
    Operating Temperature 0…+50°C
    Humidity 15 … 95 % (no condensation)
    Mechanical Protection IP65
