SG2-B2-050-OO-W-C H=500 LIN.MUTING CODED

Name: SG2-B2-050-OO-W-C H=500 LIN.MUTING CODED
SKU: 957851320
Availability: BackOrder

SG2-B2-050-OO-W-C

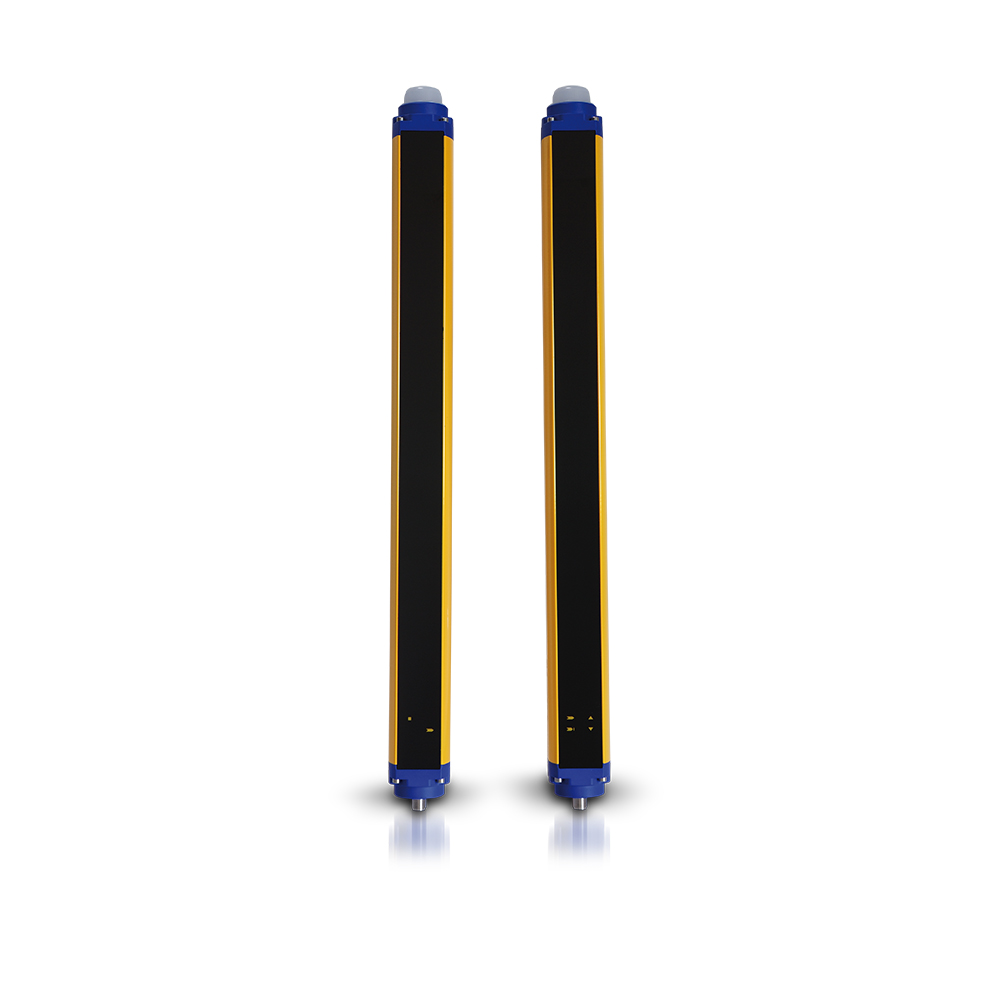

SG BODY BIG MUTING safety multiple beam type 2 2 beams h = 500 mm edm man/auto muting coded

Article no.: 957851320

Orderable item

Overview Robust housing for harsh environments Long operating range for perimeter control Rapid solution for access control with muting Easy installation and alignment 2, 3, 4 beams for body protection 40 mm resolution for arm protection and presence detection Controlled heights 500, 800, 900 and 1200 mm Long operating distance: up to 60 m Simple configuration through DIP switches Integrated muting lamp (only muting models) Anti-interference coding External muting enable signal Edged or triggered muting dependent override

Technical Features

Detection properties

Nominal sensing distance	0,5 … 60 m
Resolution	500mm
controlled height	500 mm
number of rays	2
Sensitivity adjustment	Dip-switch
Effective Aperture Angle	≤ ±5°

Application

Function Principle	Emitter + Receiver
Available functions	Manual/Automatic Restart, EDM, L/T Muting, Override, Muting Enable, Muting Filter, Anti-Interference Coding
Description	Big for harsh environment
Functions	Body protection 2 beams muting

Safety parameters

Type	Type 2 safety light curtain (A/M)
SIL	3
SILCL	3
PL	c
PFHd	3,15E-08
Dcavg	92,10%
MTTFd	288 years
SFF	95,20%

Outputs

Output type	2 x PNP-NO (OSSD safety output) with EDM
Response time	12 ms

Electrical data

Operating Voltage	24 Vdc ± 20%
Load current	≤ 500mA each output
Emission	Infrared LED (950 nm wavelength)
Interference to external light	According to IEC 61496-2
Power Consumption - Receiver	≤ 4W (no load)
Power Consumption - Emitter	≤ 2,5W
Capacitive Load	≥ 2,2µF
Cabel Length (Power Supply/Output)	≤ 70m

Mechanical data

Dimensions	52x60x606
Connections	M12-5 poles + M12-5 poles (emitter) M12-12 poles + M12-5 poles (receiver)
Storage temperature	-25…+ 70°C
Material	Painted aluminum / PMMA / PBT Valox 508
Vibrations	Width 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6)
Shocks	16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29)

Test/Approvals

Approvals	CE, cULus, TÜV
EMC compatibility	According to 2014/30/EU Directive

Generical Data

Dimensions	52x56,9x609,35 mm
Operating Temperature	0…+55°C
Humidity	15 … 95 % (no condensation)
Mechanical Protection	IP65
