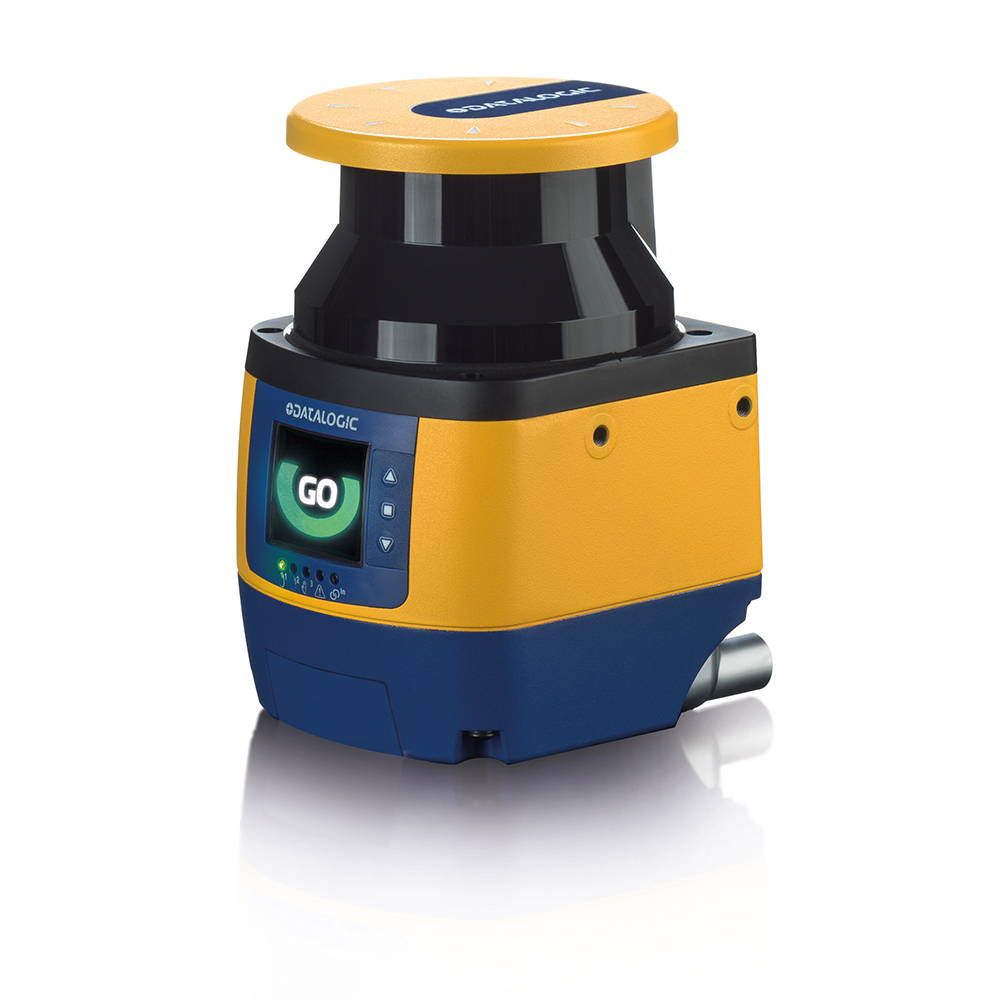

SLS-R3-E

SLS-R3-E
Remote short range Enhanced

Article no.: 958001060
Orderable item
Register
  • Description
    Overview Safety laser scanner based on Time Of Flight measurementMore than 72 m2 safely monitored, with 5.5 m over 275°High detection performances in compact sizeAdvanced dust filteringEasy programming with intuitive Graphic User InterfaceDimensions (w,d,h): 102 , 112.5, 152 mm I/O connection with standard M12 cables Up to 3 simultaenous safety zones2 Warning zones up to 40 m30/40/50/70/150 mm selectable detection capability Up to 70 zone sets Partial dynamic mutingMetal brackets allowing full orientation and fast replacementAdvanced measurement data protocolColour graphic display for monitoring and diagnosticsSpeed measurement with encoder in

    Technical Features

    Detection properties
    Nominal sensing distance ≤3 m
    controlled height 3 m
    Sensitivity adjustment GUI
    Muting enable N/A
    Scan angle 275°
    Warning zone max range 40m@target bianco (90%)
    Detection capability 30/40/50/70/150 mm selezionabile
    With 1 safety zone N/A
    With 1 safety zone + 1 warning zone N/A
    With 1 safety zone + 2 warning zones N/A
    With 2 safety zone N/A
    With 2 safety zone + 1 warning zone N/A
    With 2 safety zone + 2 warning zones N/A
    With 3 safety zone N/A
    Max zone sets number in a particular activation order N/A
    Safety area range with detection capability =30 mm 0.05 ... 2.5m
    Safety area range with detection capability =40 mm 0.05 ... 3m
    Safety area range with detection capability =50 mm 0.05 ... 3m
    Safety area range with detection capability =70 mm 0.05 ... 3m
    Safety area range with detection capability =150 mm 0.05 ... 3m
    Partial muting, dynamic for first OSSDs couple N/A
    Total Muting (monodirectional or bidirectional) N/A
    Override N/A
    Reference points disponibile
    Measurement data max. angolar resolution 0,5°
    Angular resolution 0,1°
    Response time ( Master + 3 slaves ) N/A
    Tollerance zone 100 mm
    Operative temperature range -10 …+50 °C
    Application
    Description Compact scan view 275°
    Functions Remote slave unit enhanced
    Wait time for next zone switching N/A
    Wait time for next zone switching N/A
    Configuration and monitoring interface DL Sentinel
    Safety parameters
    Type 3 (EN 61496-1)
    SIL SIL 2 (IEC 61508)
    SILCL SILCL 2 (EN 62061)
    PL PL d (EN ISO 13849-1)
    PFHd 6,38 x 10-8
    Cat. 3 (EN ISO 13849-1)
    Mission time according ( EN ISO 13849 ) 20 anni
    Outputs
    Output type n/a
    Response time Trisp. master + 10msec
    Response Time (Master + Slave) N/A
    Response Time (Master + 2 Slave) N/A
    Generic alarm disponibile
    Window cleaning alarm disponibile
    Safety output ( OSSDs) max number N/A
    Measurement data disponibili
    EDM ( external device monitoring ) N/A
    Highspeed input N/A
    Muting lamp N/A
    Configurable Inputs/Outputs total number N/A
    Configurable Inputs max number N/A
    Configurable Inputs/Output max number N/A
    Configurable Output max number N/A
    Configurable OSSDs max number N/A
    Safety zone max number come SLS-Mx-
    Warning disponibile
    Advanced data transmission protocol disponibile
    Reset ( power cycle) N/A
    Manual/automatic restart N/A
    Shut off N/A
    Electrical data
    Operating Voltage N/A
    Max ripple content N/A
    LED indicators OSSD / Warning / Interlock
    Max output current N/A
    Emission Laser Red
    Zero-voltage switching N/A
    Optical power class 1 (EN 60825-1:2014 )
    Maximum capacitance load 2,2uF @24 Vdc
    Output voltage N/A
    Cabel Length (Power Supply/Output) N/A
    Ripple N/A
    Power Consumption 8W@24v singolo dispositivo, a vuoto
    Input capacitive load 22uF
    Input current N/A
    Input saturation voltage N/A
    Mechanical data
    Dimensions 102x113x152
    Weight 1,5 kg
    Housing Material Alluminio verniciato / PC
    Connections N/A
    Storage temperature -20 … 70°C
    Material Metal - Aluminium / PMMA
    Plug N/A
    max rotation speed 1980 rpm
    Optic cover material PMMA
    Mechanical protection IP 65 (EN 60529)
    Humidity 15 … 95 % (no condensazione)
    Test/Approvals
    Approvals CE
    EMC compatibility IEC 61496 -1 / 3
    Generical Data
    System Memory N/A
    Storage -20 … 70°C
    Network Interface N/A
    Dimensions 102x113x152
    Operating Temperature -10°C ... +50°C
    Mechanical Protection IP 65 (EN 60529)
    Certifications (Safety Compliance) TUV / UL
    Power supply 24Vdc +/- 20%
