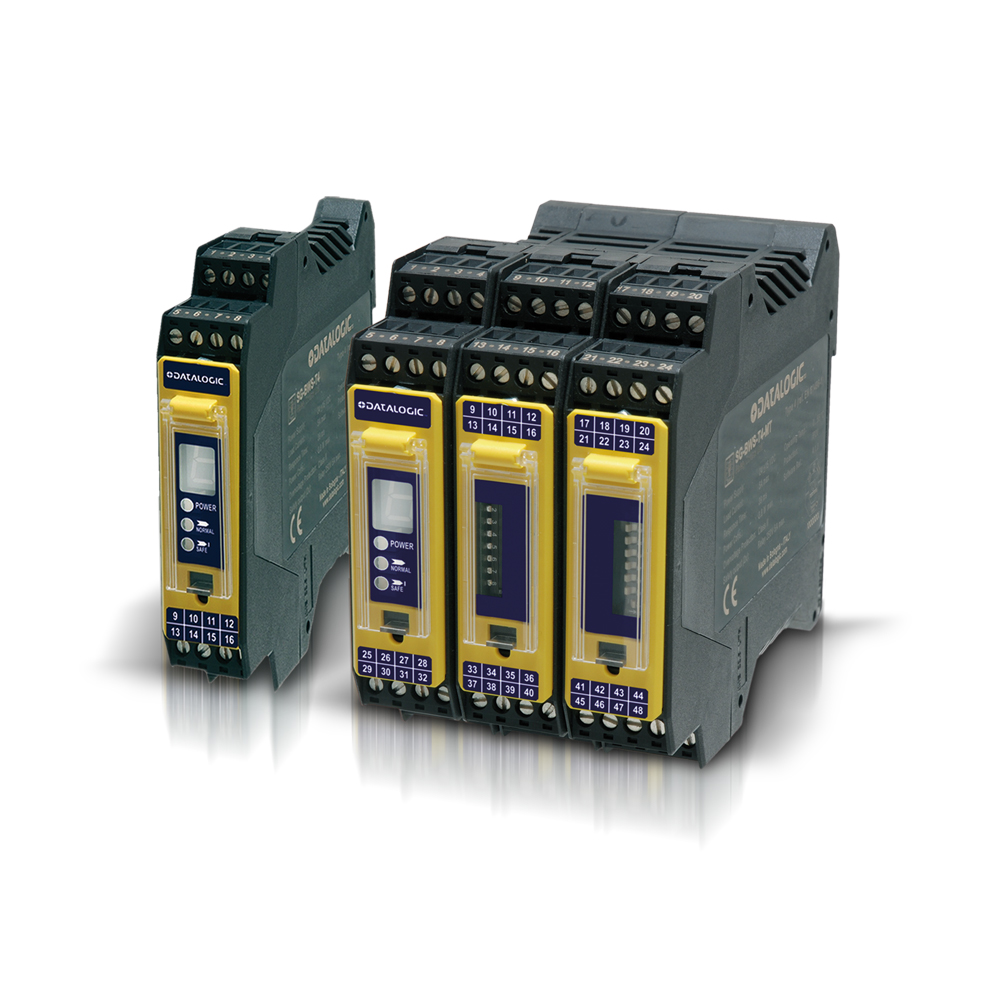

SG-BWS-T4-MT DOUBLE MUTING CONTROL UNIT

Name: SG-BWS-T4-MT DOUBLE MUTING CONTROL UNIT
SKU: 957051010
Availability: BackOrder

SG-BWS-T4-MT
Safety control unit pl = e double muting 2 pairs of sensors

Article no.: 957051010

Orderable item

Overview Body access detection Perimeter controlRapid solution for access control with mutingEasy installation and alignmentL and T muting models provided with Retroreflective Muting ArmsTwo, three or four beams for body protection Controlled heights of 500, 800, 900 and 1200 mmLong operating distance: up to 50 mSimple configuration through DIP switchesIntegrated muting lamp (only on muting models)

Technical Features

Detection properties

Nominal sensing distance	According to the sensors used: S5ST up to 8m; SL5ST and S300ST4 up to 40m; S300*ST2 up to 50m
controlled height	n/a
Sensitivity adjustment	Dip-switch
Effective Aperture Angle	n/a

Application

Function Principle	Control unit
Available functions	Manual/Automatic Restart, EDM, Double Muting, Override
Description	DIN-rail mount case
Max. number of sensors connected	4 x S5ST/SL5ST/S300*ST pairs
Max. number of muting sensors	4 x PNP-NO
Functions	4 safety light beam inputs - muting

Safety parameters

Type	Type 4 safety control unit (A/M)
SIL	3
SILCL	3
PL	e
PFHd	5,43E-09
Dcavg	99,65%
MTTFd	183 years
SFF	98,80%

Outputs

Output type	2 Relay NO
Response time	35 ms

Electrical data

Operating Voltage	24 Vdc ± 15%
Emission	n/a
Interference to external light	n/a
Power Consumption - Receiver	n/a
Power Consumption - Emitter	n/a
Cabel Length (Power Supply/Output)	≤ 50m
Cable Length (sensors)	≤ 50m
Power Consumption	≤ 3,8W

Mechanical data

Dimensions	68x99x119
Connections	Terminal block
Storage temperature	-25…+ 70°C
Material	Plastic - PA66
Vibrations	Width 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6)
Shocks	16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29)

Test/Approvals

Approvals	CE, TÜV
EMC compatibility	According to 2014/30/EU Directive

Generical Data

Dimensions	68x99x119 mm
Operating Temperature	0…+55°C
Mechanical Protection	IP20
