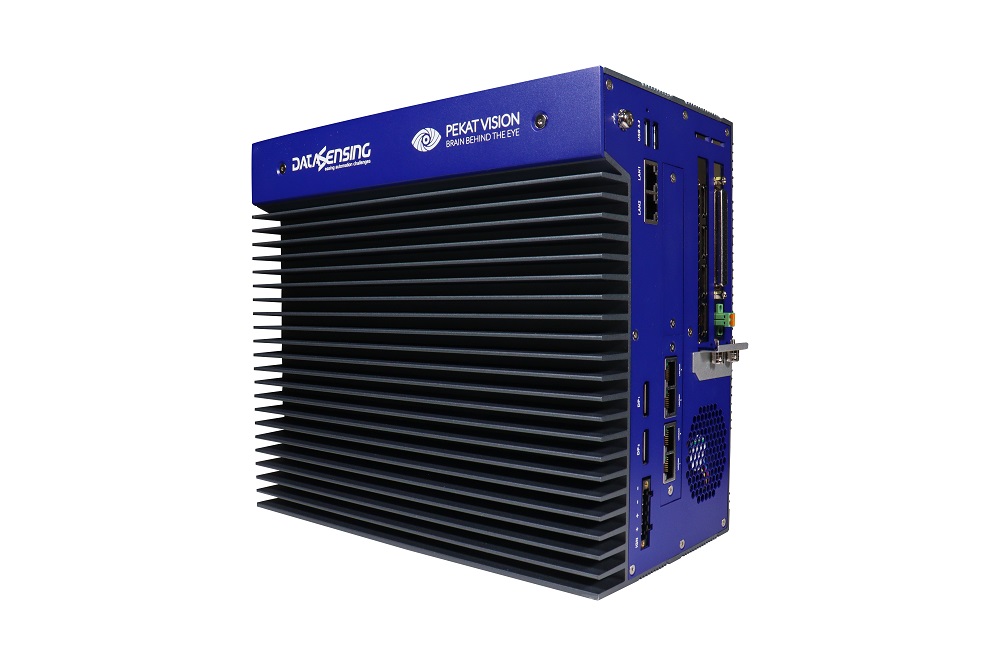

MX-G2000-4-B-2, 4 GIG-E, PNP/NPN, WIN10

MX-G2000-4-B-2, 4 GIG-E, PNP/NPN, WIN10

Article no.: 959910007
Orderable item
Register
  • Description

    Technical Features

    Electrical data
    Operating Voltage 12..48
    Power Consumption 10
    Mechanical data
    Weight 7.5 Kg
    Housing Material Aluminum-magnesium alloy housing
    Storage temperature -40..+85
    Model MX-G2000-4-B-2
    Vibrations 5~500Hz, 1.5Grms@with SSD (IEC60068-2-64)
    Shocks k20G peak acceleration (11ms duration) with SSD (IEC60068-2-27 EMC: CE/FCC Class A)
    Generical Data
    CPU Intel Core i5-12500TE - 6-core
    Storage 512 Gb
    Graphics 2x DisplayPort (Full-size, DP 1.4, DP++, HDMI 1.4)
    Camera Interface 4x 1000 Mbps Base-T, PoE camera ports (Up to 15 W per channel)
    Network Interface 2 x LAN ports - 2.5 Gbit/s Ethernet
    Serial Communications 2x RS-232 serial port
    Keyboard/Mouse 6x USB 3.2 Gen 2 Type-A
    Comm Connectivity Supports EtherNet/IP, Profinet, Modbus TCP, OPC and HTTP
    I/O 16 IN / 16 OUT opto-isolated
    Operating System Windows 10 IOT Enterprise 2021 LTSC
    Dimensions 267 x 240 x 143
    Operating Temperature -40..+50
    Humidity 10..95%
    Mechanical Protection IP20
